Components [12/2012 - 08/2016]: Illustration

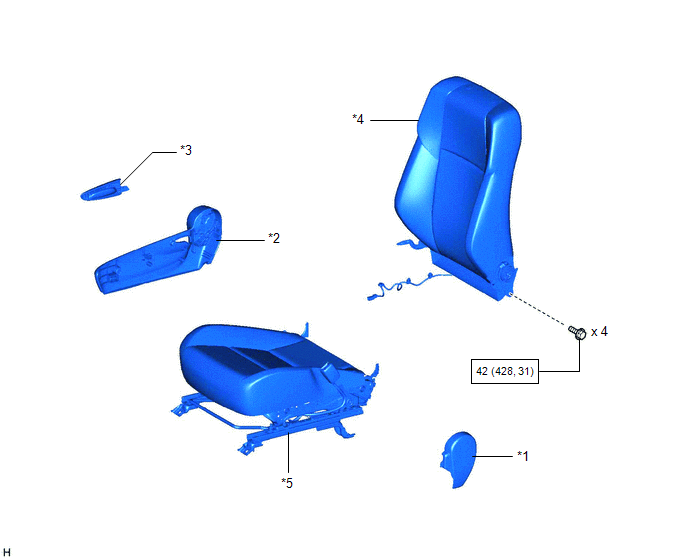

Fig 1: Front Seatback Heater (For Front Passenger Side) Components With Torque Specifications [12/2012 - 08/2016]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT INNER SEAT CUSHION SHIELD RH	*2	FRONT SEAT CUSHION SHIELD RH
*3	RECLINING ADJUSTER RELEASE HANDLE RH	*4	SEPARATE TYPE FRONT SEATBACK ASSEMBLY
*5	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

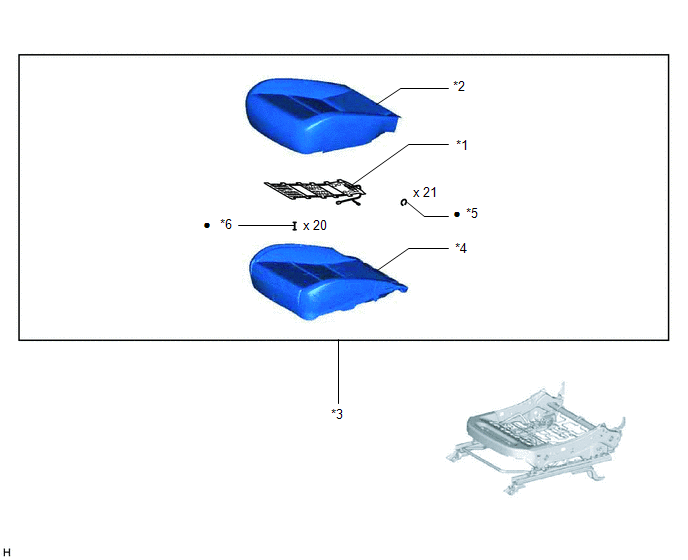

*1	FRONT SEAT CUSHION HEATER ASSEMBLY RH	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	*4	SEPARATE TYPE FRONT SEAT CUSHION PAD
*5	HOG RING	*6	TACK PIN
•	Non-reusable part	-
