Removal [12/2012 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

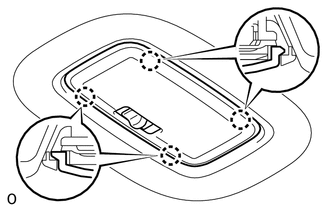

    1. Detach the 4 claws to remove the No. 1 room light lens.
      GTY366193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

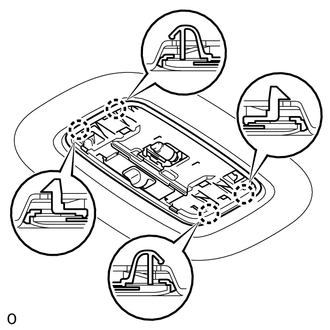

    2. Detach the 4 claws to disconnect the No. 1 room light switch housing.
      GTY366194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

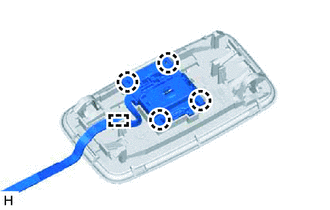

    3. Detach the 4 claws and clamp to remove the No. 1 room light switch housing from the room light switch base.
      GTY363232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ROOM LIGHT BULB
    1. Remove the No. 1 room light bulb from the room light switch base.
      GTY381506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
