Removal [10/2015 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

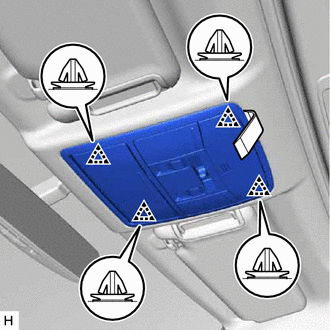

    GTY572342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using moulding remover D, detach the 4 clips.
    2. Disconnect the connector to remove the map light assembly.
