Removal [12/2012 - ]: Procedure

  1. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 4 [12/2012 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - ]

  2. REMOVE TELLTALE LIGHT ASSEMBLY (HAZARD WARNING SWITCH)

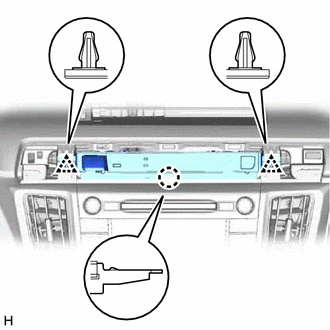

    GTY381577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 clips and claw.
    2. Disconnect the connector to remove the telltale light assembly (hazard warning switch).
