Removal [12/2012 - 10/2015]: Procedure

  1. REMOVE CENTER BACK DOOR GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 3

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    Refer to PROCEDURE - Step 18

  6. REMOVE REAR LIGHT ASSEMBLY LH
    1. Put protective tape around the rear light assembly LH.
    2. Disconnect the 2 connectors.
    3. Remove the 3 nuts and 2 cap nuts to remove the rear light assembly LH.

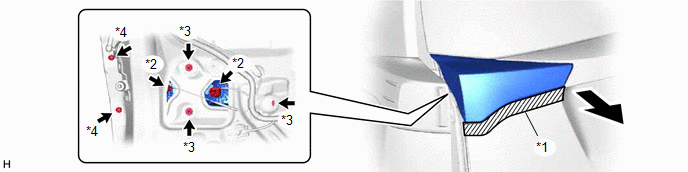

      GTY374056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape *2 Connector
      *3 Nut *4 Cap Nut
