Reassembly [12/2012 - 10/2015]: Procedure

  1. INSTALL REAR LIGHT GASKET LH
    1. Install a new rear light gasket LH to the rear light lens and body LH.
  2. INSTALL BACK UP LIGHT BULB
    GTY363593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the back up light bulb to the back up light socket.
  3. INSTALL BACK UP LIGHT SOCKET

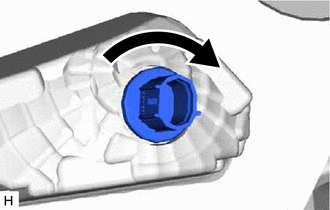

    GTY381589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the back up light socket with the back up light bulb in the direction indicated by the arrow to install them as a unit.
  4. INSTALL TAILLIGHT BULB
    GTY363619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the taillight bulb to the taillight socket.
  5. INSTALL TAILLIGHT SOCKET

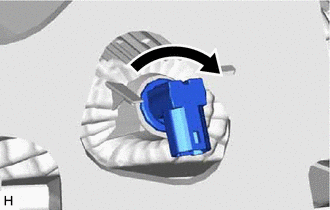

    GTY363614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the taillight socket with the taillight bulb in the direction indicated by the arrow to install them as a unit.
