Removal [10/2015 - ]: Procedure

  1. REMOVE REAR BUMPER COVER

    Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - ]

  2. REMOVE BACK-UP LIGHT ASSEMBLY LH

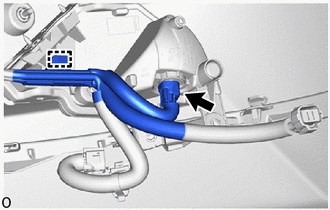

    1. Disconnect the connector and detach the wire harness clamp.
      GTY593959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

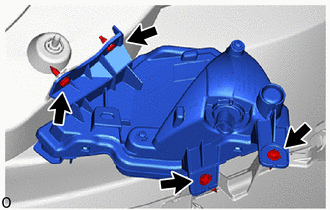

    2. Remove the 2 screws and 2 clips and back up light assembly LH.
      GTY540824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
