Reassembly [10/2015 - ]: Procedure

  1. INSTALL BACK-UP LIGHT BULB
    1. Install the back up light bulb to the bulb socket.
      GTY582086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the matchmark of the bulb socket with the unlock position mark, and then rotate the bulb socket clockwise until the lock position mark to install the bulb socket.

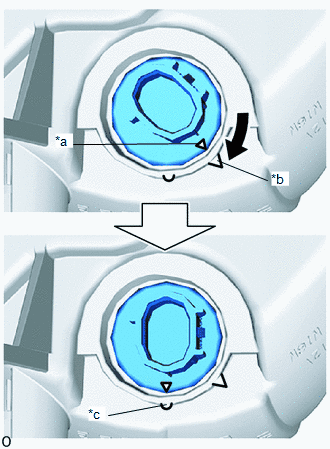

      GTY593446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      *b Unlock Position Mark
      *c Lock Position Mark
