Components [11/2015 -]

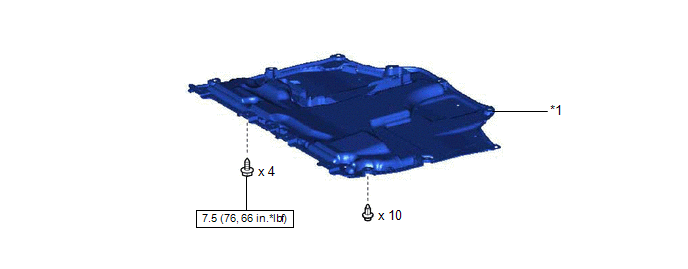

Fig 1: Shift Control Actuator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	-	-

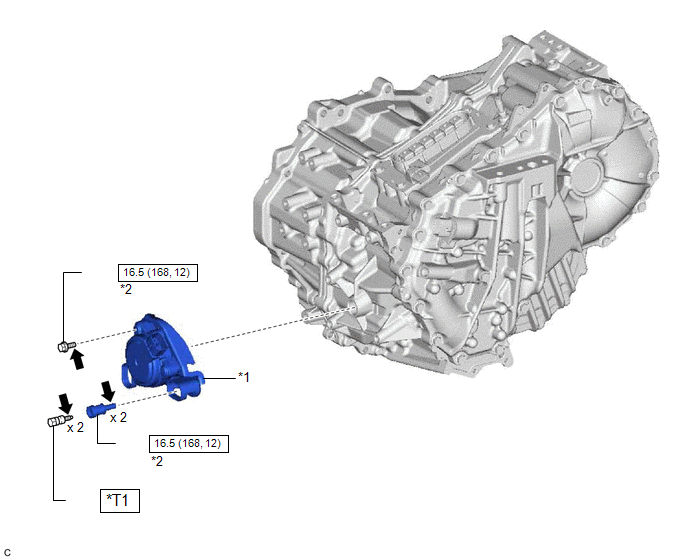

Fig 2: Shift Control Actuator Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	SHIFT CONTROL ACTUATOR ASSEMBLY	*2	SHIFT CONTROL ACTUATOR BOLT
	N.m (kgf.cm, ft./lbf): Specified torque	•	Non-reusable part
	Adhesive 1324	*	Precoated part
*T1	Breaking Torque: 4.9 to 8.8 N.m (50 to 90 kgf.cm, 43 to 78 in./lbf)	-	-
