Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [11/2015 - 11/2017] , or refer to REMOVAL [11/2017 - 12/2018]

  2. REMOVE NO. 1 CLEARANCE WARNING BUZZER
    1. Using a clip remover, disengage the clamp.
      GTY564427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 clearance warning buzzer.
  3. REMOVE NO. 2 CLEARANCE WARNING BUZZER
    1. Using a clip remover, disengage the clamp.

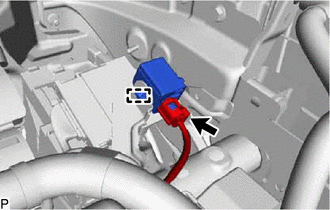

      GTY564420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 2 clearance warning buzzer.
