Removal [11/2015 - 11/2017]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [11/2015 - 11/2017]

  2. REMOVE BACK-UP BATTERY WITH BRACKET

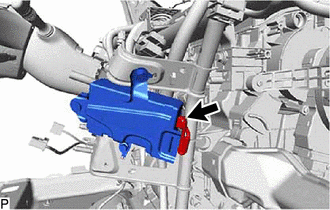

    1. Disconnect the connector.
      GTY567517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

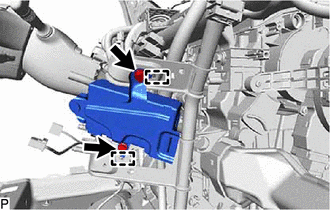

    2. Remove the 2 bolts.
      GTY603956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the back-up battery with bracket.
  3. REMOVE NO. 3 TELEPHONE BRACKET

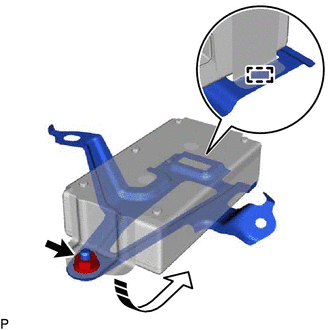

    1. Remove the nut.
      GTY554894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the guide to remove the No. 3 telephone bracket as shown in the illustration.
  4. REMOVE NO. 4 TELEPHONE BRACKET

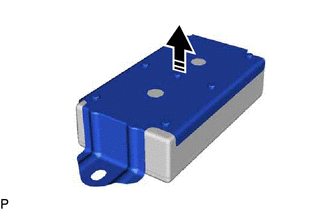

    1. Remove the No. 4 telephone bracket as shown in the illustration.
      GTY592530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE BACK-UP BATTERY
