Removal [11/2015 - 12/2018]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [11/2015 - 12/2018]

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY

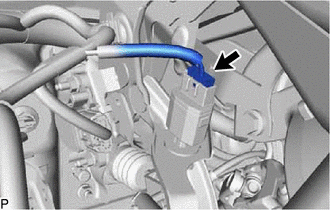

    1. Disconnect the connector.
      GTY553403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

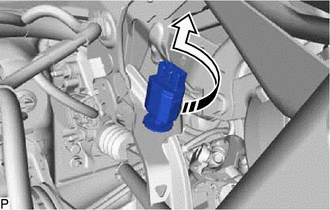

    2. Turn the stop light switch assembly counterclockwise and remove it.
      GTY558831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
