On-Vehicle Inspection [11/2015 -]: Procedure
- CHECK ENGINE OIL LEVEL
- Put the engine in inspection mode (maintenance mode).
Powertrain > Hybrid Control > Utility
Tester Display Inspection Mode - Warm up and stop the engine, then wait for 5 minutes.
- Check that the engine oil level is between the low level and full level marks on the engine oil level dipstick.
If the level is low, check for engine oil leaks and add engine oil to the full level mark.
NOTE:Do not fill to above the full level mark.
HINT:
A certain amount of engine oil will be consumed while driving. In the following situations, engine oil consumption may increase, and engine oil may need to be refilled in between oil maintenance intervals.
- When the engine is new, for example directly after purchasing the vehicle or after replacing the engine.
- If low quality engine oil or oil of an inappropriate viscosity is used.
- When driving at high engine speeds or with a heavy load (when towing, etc.), or when accelerating or decelerating frequently while driving.
- When idling for a long time, or when driving frequently through heavy traffic.
When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.
- Put the engine in inspection mode (maintenance mode).
- CHECK ENGINE OIL QUALITY
- Check the engine oil for deterioration, water intrusion, discoloration or thinning.
If the quality is visibly poor, replace the engine oil and oil filter element.
- Check the engine oil for deterioration, water intrusion, discoloration or thinning.
- CHECK OIL PRESSURE WARNING:
- To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the power switch on (IG).
- To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.
- To prevent burns, do not remove the engine oil pressure switch assembly while the engine is hot.
- Remove the engine oil pressure switch assembly.
HINT:
Refer to REMOVAL [11/2015 -]

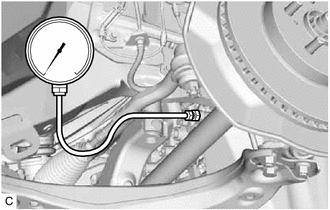

- Install an oil pressure gauge with adapter.
- Put the engine in inspection mode (maintenance mode).
Powertrain > Hybrid Control > Utility
Tester Display Inspection Mode - Warm up the engine.
HINT:
After warming up the engine, the engine coolant temperature is between 75 and 100°C (167 to 212°F).
- Check the oil pressure.
Standard Oil Pressure
Engine Condition Specified Condition Idling 60 kPa or higher Idling 0.6 kgf/cm2 or higher Idling 8.7 psi or higher 2500 rpm 142 kPa or higher 2500 rpm 1.4 kgf/cm2 or higher 2500 rpm 21 psi or higher If the result is not as specified, check the quality of the engine oil and check the oil paths for clogging. Repair or replace if necessary. If the engine oil pressure is still not as specified, check the oil pump assembly.
HINT:
Refer to INSPECTION [11/2015 -]
- Remove the oil pressure gauge with adapter.
- Install the engine oil pressure switch assembly.
HINT:
Refer to INSTALLATION [11/2015 -]
- Inspect for engine oil leaks.
HINT:
Refer to PROCEDURE - Step 6 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 6 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 - 06/2021] , or refer to PROCEDURE - Step 6 [06/2021 -]
- To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the power switch on (IG).
