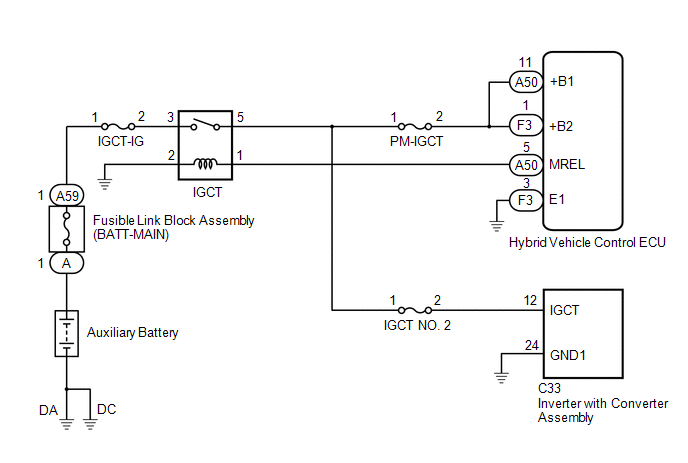

DTC P0A1B-94: Drive Motor "A" Control Module Unexpected Operation [11/2015 - ]: Wiring Diagram

GTY904199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
