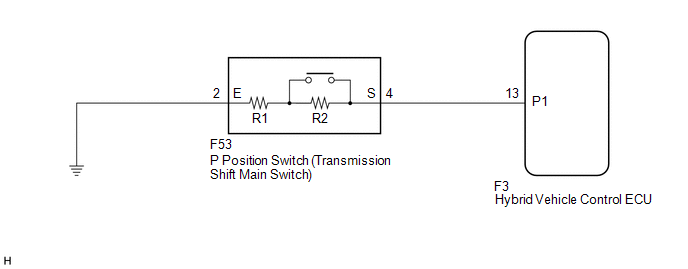

DTC P0850-11: Park/Neutral Switch Circuit Short to Ground; DTC P0850-15: Park/Neutral Switch Circuit Short to Auxiliary Battery or Open [11/2015 - ]: Wiring Diagram

GTY545711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
