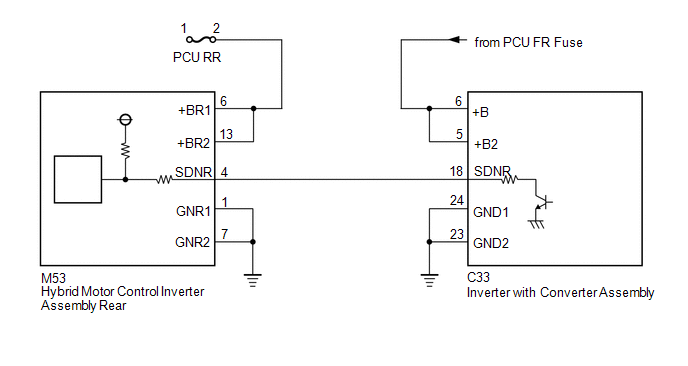

Rear Shut Down Signal Circuit [12/2018 -]: Wiring Diagram

GTY870661

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
