Installation [04/2018 - ]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

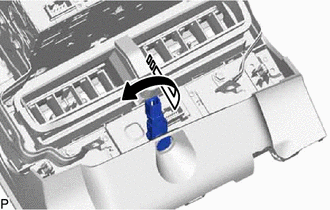

    1. Turn the interior illumination light sub-assembly as shown in the illustration to install it.
      GTY931986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to INSTALLATION [04/2018 - ]
