Installation [04/2018 -]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR ASSEMBLY
1. Install the generator assembly with the 2 bolts.
  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
2. Install the generator assembly bracket with the 2 bolts in the order shown in the illustration.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

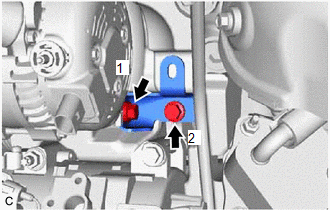

  Fig 1: Identifying Generator Assembly Bracket And Bolts With Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness clamp bracket with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Engage the 3 wire harness clamps.
5. Connect the camshaft timing oil control solenoid assembly connector.
6. Connect the compressor assembly with magnetic clutch connector.
7. Connect the generator assembly connector.
8. Connect the wire harness to terminal B with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
9. Close the terminal cap.
INSTALL V-RIBBED BELT
Refer to INSTALLATION [04/2018 -]
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 46
INSTALL RADIATOR ASSEMBLY
Refer to INSTALLATION [04/2018 -]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [04/2018 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 -]
