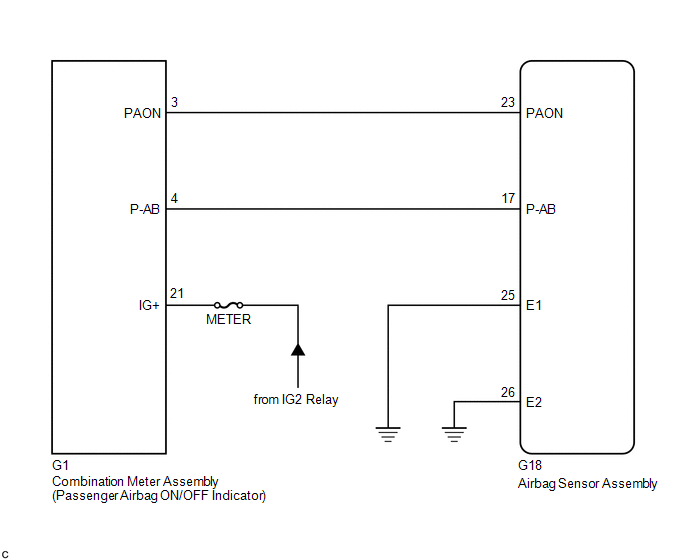

DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [06/2017 - ]: Wiring Diagram

GTY741663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
