Rear Shock Absorber
>>
Components [11/2015 - ]
>>
Illustration
Components [11/2015 - ]: Illustration

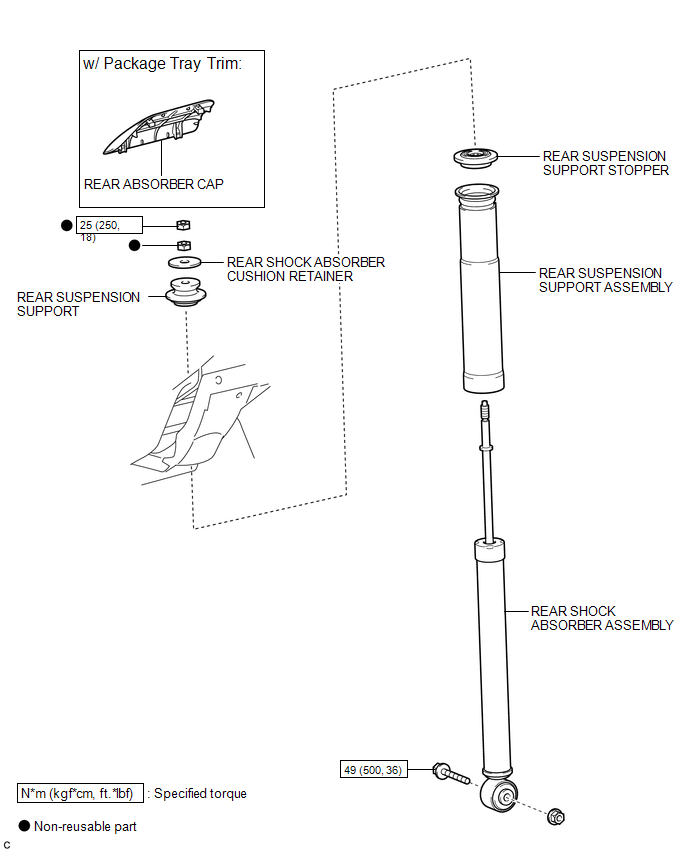

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
