Components [11/2015 - ]: Illustration

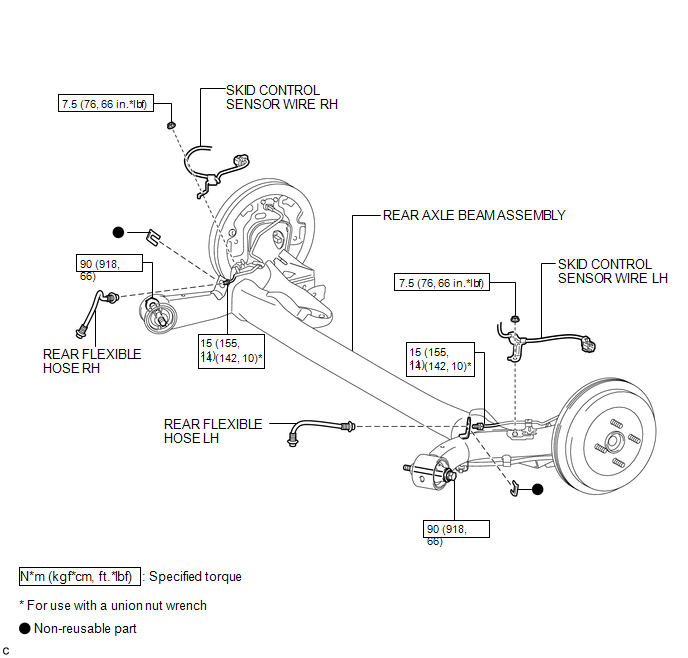

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications (1 Of 2)
GTY730456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

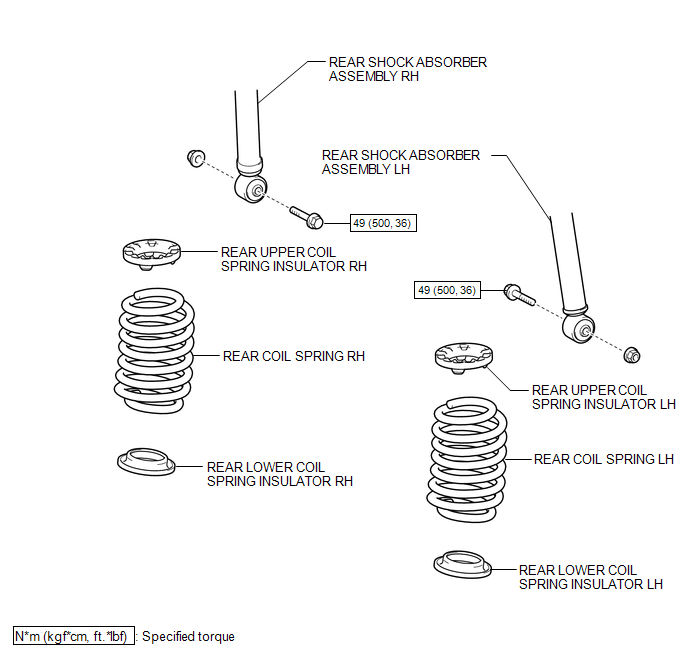

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications (2 Of 2)
GTY736947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
