Components [11/2015 - ]: Illustration

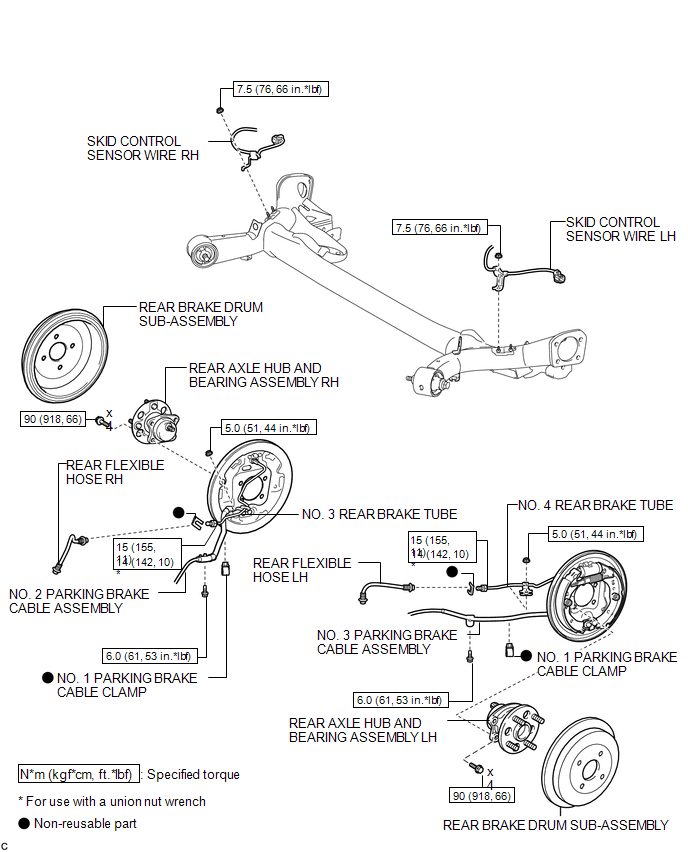

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (1 Of 3)
GTY723251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

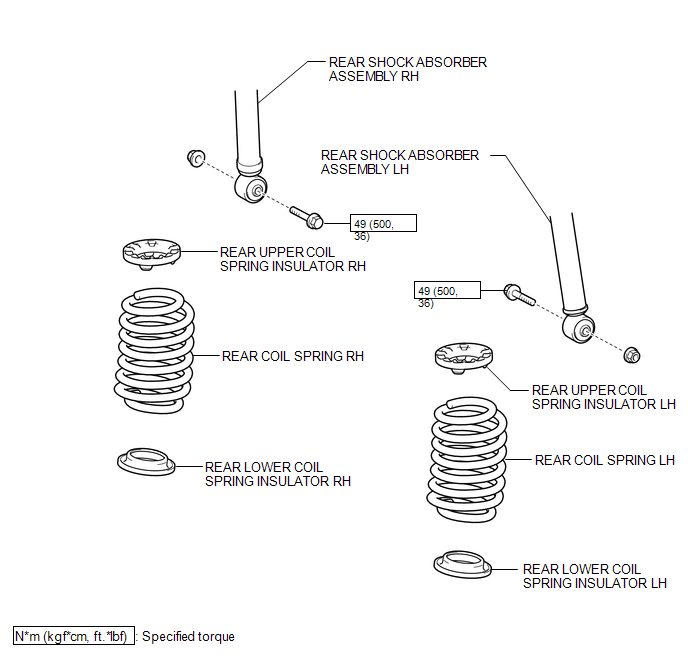

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (2 Of 3)
GTY713980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

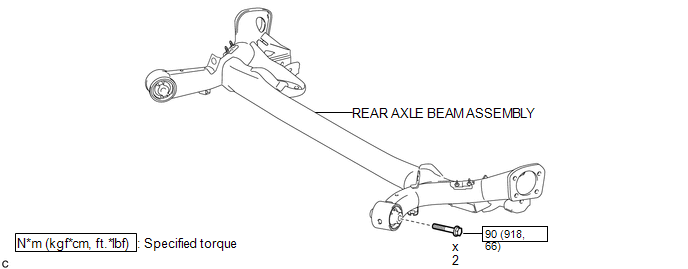

Fig 1: Rear Axle Beam Replacement Components With Torque Specifications (3 Of 3)
GTY327463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
