Removal [06/2017 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY
  2. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  3. REMOVE FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 3

  4. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT CENTER FLOOR COVER

    Refer to PROCEDURE - Step 5

  6. REMOVE REAR SEAT CUSHION ASSEMBLY (for Bench Type Seatback)

    Refer to PROCEDURE - Step 7

  7. REMOVE REAR SEATBACK ASSEMBLY (for Bench Type Seatback)

    Refer to PROCEDURE - Step 6

  8. REMOVE REAR SEAT CUSHION ASSEMBLY (for Separate Type Seatback)

    Refer to PROCEDURE - Step 8

  9. REMOVE REAR SEATBACK ASSEMBLY RH (for Separate Type Seatback)

    for RH Side:

    Refer to PROCEDURE - Step 6

  10. REMOVE REAR SEATBACK ASSEMBLY LH (for Separate Type Seatback)

    for LH Side:

    Refer to PROCEDURE - Step 7

  11. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 9

  12. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 3

  13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 8

  14. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)

    Refer to PROCEDURE - Step 25

  15. REMOVE REAR FLOOR MAT ASSEMBLY

    Refer to PROCEDURE - Step 23

  16. REMOVE SPARE WHEEL CUSHION

    Refer to PROCEDURE - Step 24

  17. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 26

  18. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

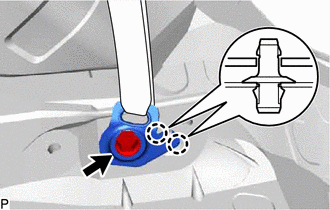

    1. Remove the bolt.
    2. Disengage the 2 claws and disconnect the floor anchor of the rear seat 3 point type outer belt assembly.
      GTY327198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR ABSORBER CAP (w/ Package Tray Trim)

    Refer to PROCEDURE - Step 28

  20. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (w/ Package Tray Trim)

    for LH Side:

    Refer to PROCEDURE - Step 1

  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY (w/o Package Tray Trim)

    Refer to PROCEDURE - Step 30

  22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY (w/ Package Tray Trim)

    Refer to PROCEDURE - Step 31

  23. DISCONNECT REAR CENTER SEAT LAP TYPE BELT ASSEMBLY (for RH Side)

    See step  19

  24. REMOVE ROOF SIDE INNER GARNISH LH (for LH Side)

    Refer to PROCEDURE - Step 32

  25. REMOVE ROOF SIDE INNER GARNISH RH (for RH Side)

    Refer to PROCEDURE - Step 37

  26. REMOVE REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY

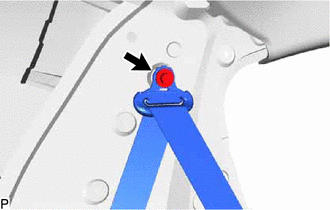

    1. Remove the bolt and disconnect the shoulder anchor of the rear seat 3 point type outer belt assembly.
      GTY328974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

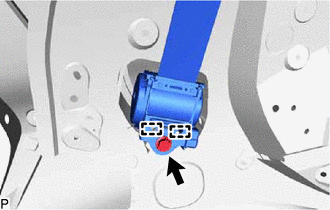

    2. Remove the bolt.
      GTY328973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and remove the rear seat 3 point type outer belt assembly.
