Installation [11/2015 - ]: Procedure

1. Engage the 2 claws to install a new No. 1 parking brake cable clamp to the No. 3 parking brake cable assembly.

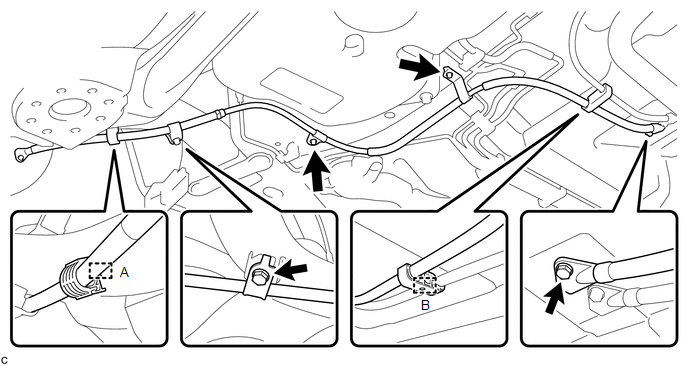

1. Install the No. 3 parking brake cable assembly with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

2. Engage clamp A to install the No. 3 parking brake cable assembly.
   NOTE:

   Securely install the clamp.

3. Insert the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly into new clamp B and install clamp B to the vehicle.
4. Install the No. 3 parking brake cable assembly onto the backing plate with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

5. Connect the No. 3 parking brake cable assembly to the parking brake equalizer.
6. Engage the 2 claws to install the parking brake cable stopper.

1. Install the No. 1 fuel tank protector sub-assembly with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

2. Install the clip.

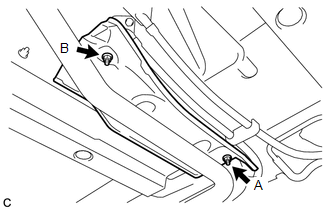

1. Install the front No. 4 floor heat insulator with the 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

   Nut A

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

   Nut B

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

(Refer to PROCEDURE - Step 5 )

Refer to PROCEDURE - Step 3

See step  4

See step  5

(Refer to INSTALLATION [11/2015 - ] )
