Removal [11/2015 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)

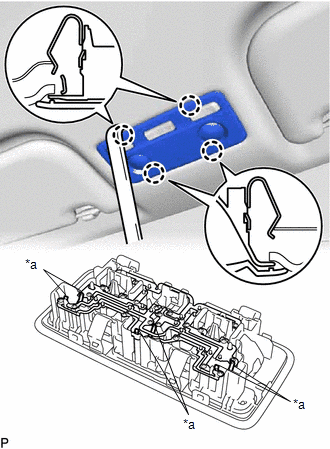

    1. Using a moulding remover, disengage the 4 claws.
      GTY334672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *a Contact Portion
      NOTE:

      Do not touch the metal plates, especially the contact portions, as it may cause a malfunction such as the light does not illuminate.

    2. Disconnect the connector and remove the map light assembly.
  2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)

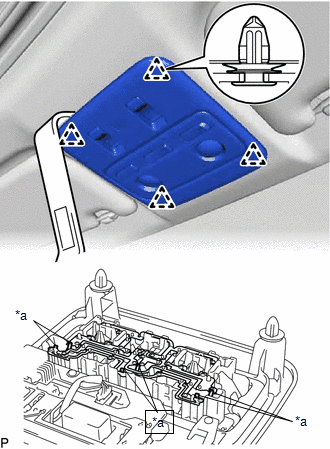

    1. Using a moulding remover, disengage the 4 clips.
      GTY339969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *a Contact Portion
      NOTE:

      Do not touch the metal plates, especially the contact portions, as it may cause a malfunction such as the light does not illuminate.

    2. Disconnect the connector and remove the map light assembly.
  3. REMOVE OUTER ROOM LIGHT LENS (w/o Sliding Roof)

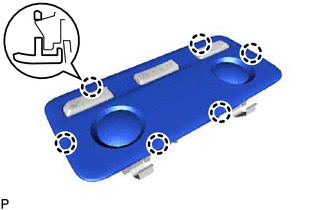

    1. Disengage the 6 claws and remove the outer room light lens.
      GTY326430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  4. REMOVE OUTER ROOM LIGHT LENS (w/ Sliding Roof)

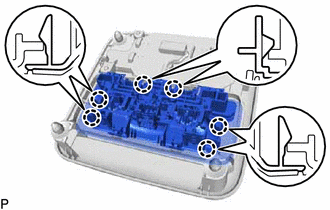

    1. Disengage the 6 claws and remove the map light sub-assembly from the roof console panel.
      GTY337881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

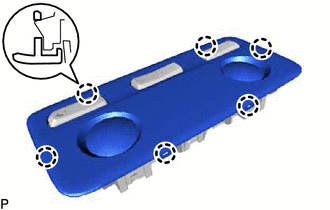

    2. Disengage the 6 claws and remove the outer room light lens.
      GTY337882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
  5. REMOVE MAP LIGHT BULB
    1. Remove the 2 map light bulbs from the map light assembly.
