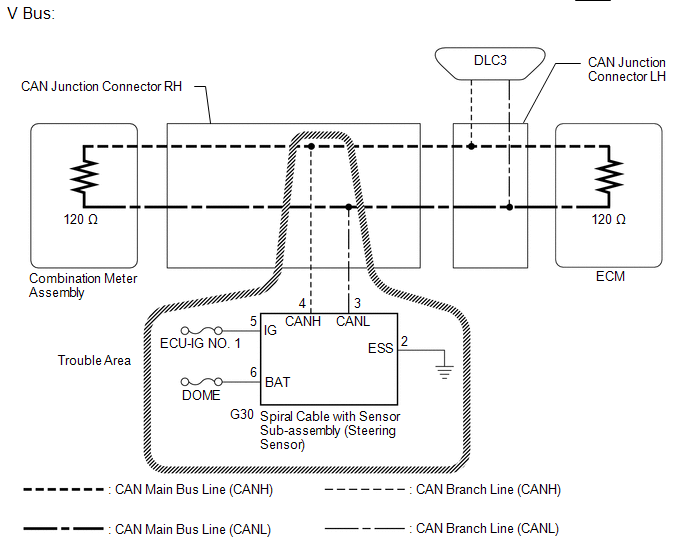

Steering Angle Sensor Communication Stop Mode [11/2015 - ]: Wiring Diagram

GTY728649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
