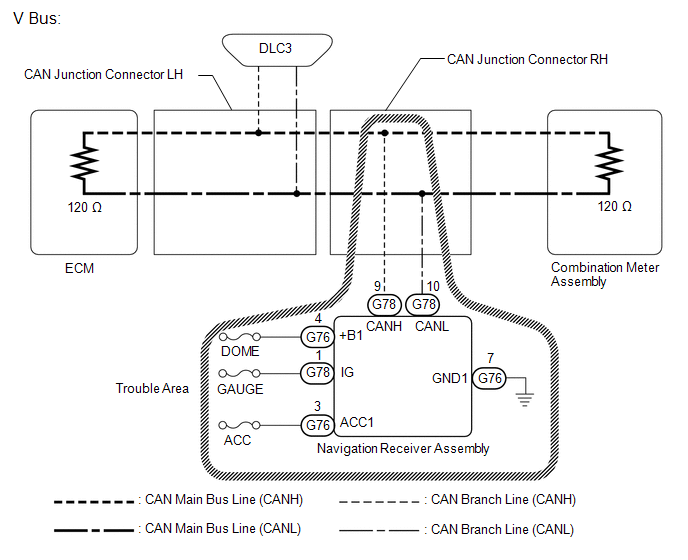

Navigation ECU Communication Stop Mode [11/2015 - ]: Wiring Diagram

GTY736185

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
