Main Body ECU Communication Stop Mode [11/2015 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the G59 main body ECU (multiplex network body ECU) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G59-14 (CANH) - G59-13 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU))

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU))

Result:

OK

See step  2

1. Disconnect the 3B and 3C instrument panel junction block assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3B-8 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Instrument Panel Junction Block Assembly)

3. Reconnect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   3C-21 (BECU) - Body ground	Ignition switch off	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Instrument Panel Junction Block Assembly)

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

Result:

OK

See step  3

1. Remove the instrument panel junction block assembly (Refer to REMOVAL [11/2015 - ] ).
2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

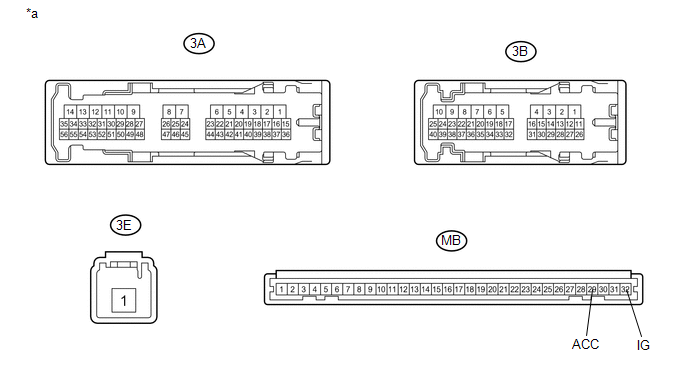

   TEXT IN ILLUSTRATION



   *a

   Component without harness connected (Instrument Panel Junction Block Assembly)

   -

   -

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3E-1 - MB-32 (IG)	Cable disconnected from negative (-) auxiliary battery terminal	10 kΩ or higher
   3E-1 - MB-32 (IG)	Auxiliary battery positive (+) → 3A-29 Auxiliary battery negative (-) → 3B-8	Below 1 Ω
   3E-1 - MB-29 (ACC)	Cable disconnected from negative (-) auxiliary battery terminal	10 kΩ or higher
   3E-1 - MB-29 (ACC)	Auxiliary battery positive (+) → 3B-37 Auxiliary battery negative (-) → 3B-8	Below 1 Ω

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to REMOVAL [11/2015 - ] )

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

Refer to REMOVAL [11/2015 - ] )
