Hybrid Vehicle Control ECU Communication Stop Mode [11/2015 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (HYBRID VEHICLE CONTROL ECU BRANCH LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the G58 hybrid vehicle control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

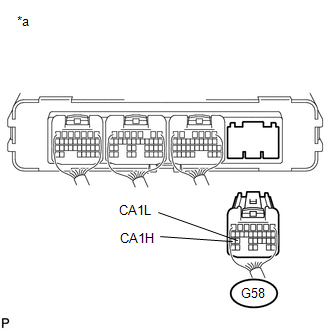

Tester Connection Condition Specified Value G58-25 (CA1H) - G58-24 (CA1L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HYBRID VEHICLE CONTROL ECU)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (GROUND TERMINAL)
- Reconnect the G58 hybrid vehicle control ECU connector.
- Disconnect the G57 hybrid vehicle control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

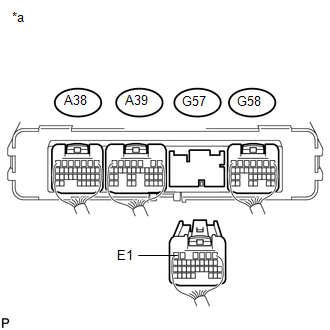

Tester Connection Condition Specified Value G57-6 (E1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND TERMINAL)
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)
- Reconnect the G57 hybrid vehicle control ECU connector.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

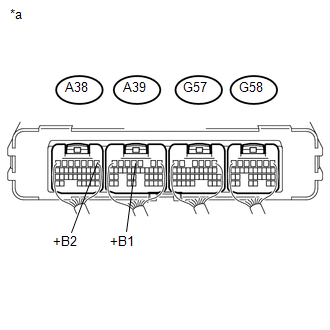

Tester Connection Condition Specified Value A39-4 (+B1) - Body ground Ignition switch ON (IG) 11 to 14 V A38-1 (+B2) - Body ground Ignition switch ON (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Component with harness connected
(Hybrid Vehicle Control ECU)
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU
Refer to REMOVAL [11/2015 - ] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE TERMINAL)
