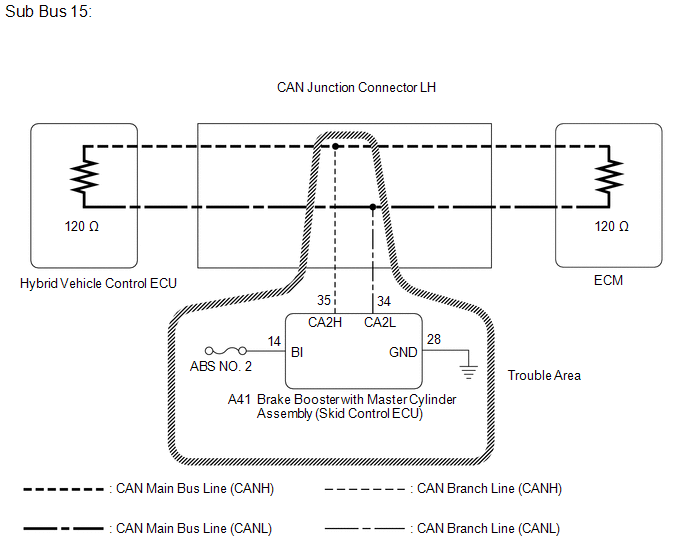

DTC U0129: Lost Communication with Brake System Control Module [11/2015 - ]: Wiring Diagram

GTY734276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
