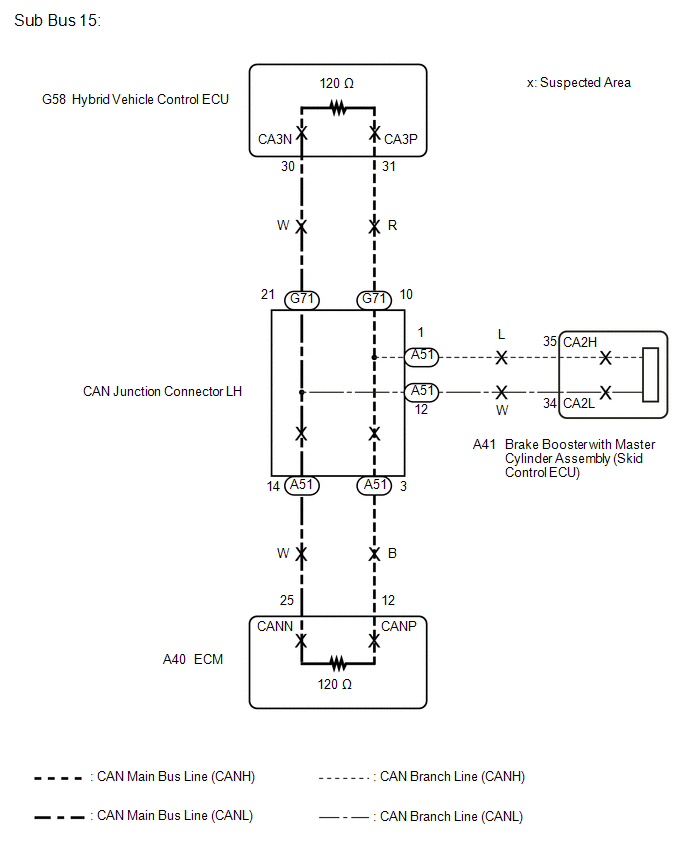

DTC U0100: Lost Communication with ECM / PCM "A"; DTC U0129: Lost Communication with Brake System Control Module; DTC U0293: Lost Communication with HV ECU [11/2015 - 06/2017]: Wiring Diagram

GTY572961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
