Audio Receiver Assembly Communication Stop Mode [11/2015 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the G41 radio and display receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G41-9 (CANH) - G41-10 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION

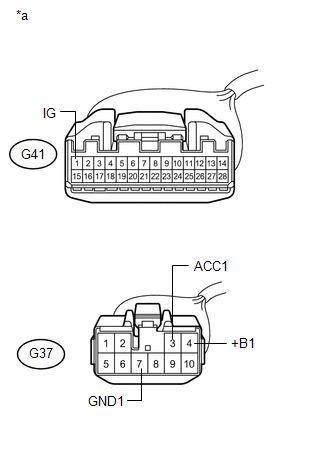

   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

Result:

OK

See step  2

1. Disconnect the G37 radio and display receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G37-7 (GND1) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Radio and Display Receiver Assembly)

3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   G37-3 (ACC1) - Body ground	Ignition switch ACC	11 to 14 V
   G37-4 (+B1) - Body ground	Ignition switch off	11 to 14 V
   G41-1 (IG) - Body ground	ignition switch ON (IG)	11 to 14 V

Result:

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to REMOVAL [11/2015 - 06/2017] Refer to REMOVAL [06/2017 - ] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
