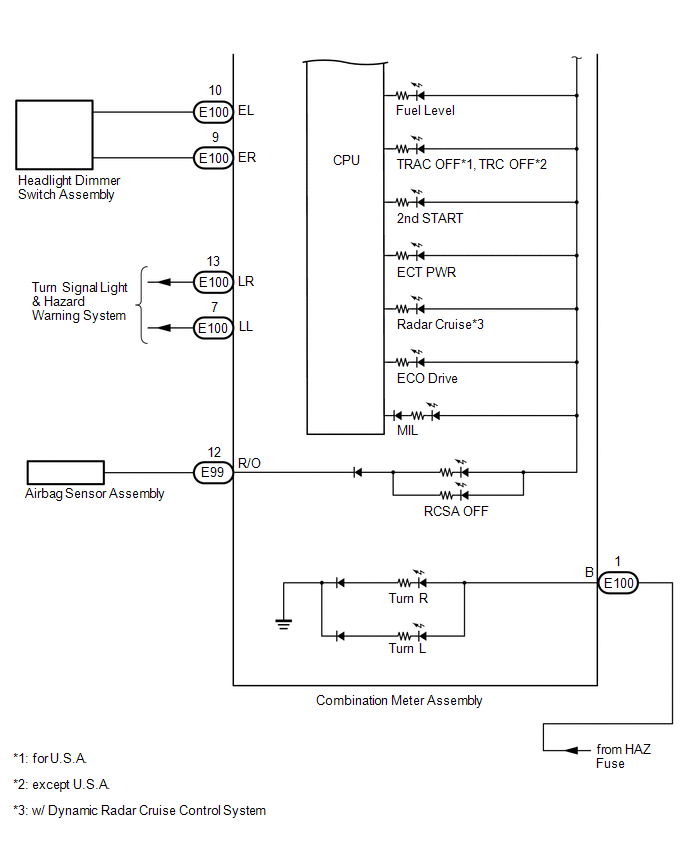

Home >> Toyota >> 2018 >> Land Cruiser >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display - Diagnostics - Introduction (1 Of 2) >> Meter / Gauge System >> System Diagram [08/2015 - 08/2017] >> System Diagram [08/2015 - 08/2017]
