Components [11/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

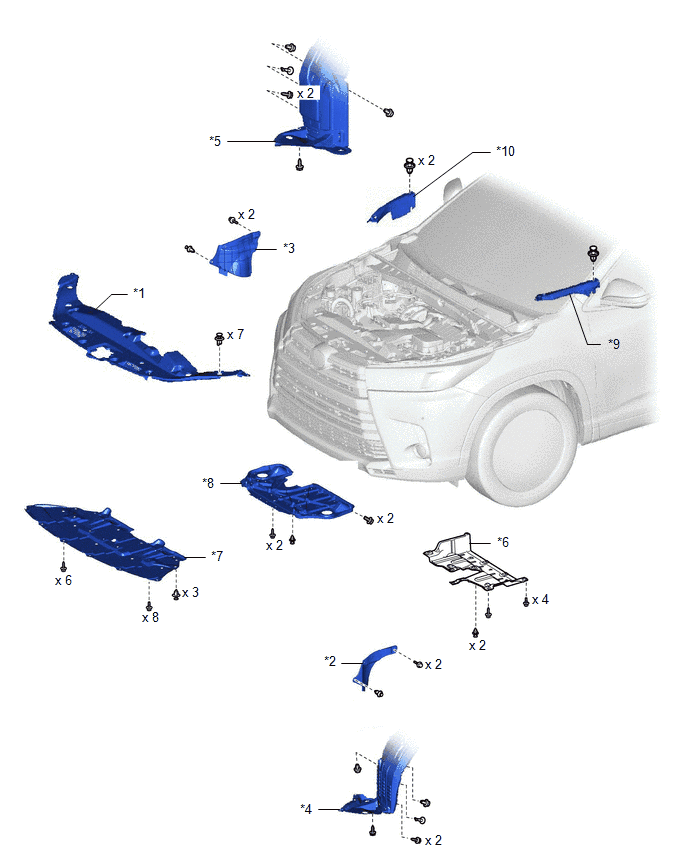

| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
FRONT FENDER APRON SEAL LH |
| *3 |
FRONT FENDER APRON SEAL RH |
*4 |
FRONT FENDER LINER LH |
| *5 |
FRONT FENDER LINER RH |
*6 |
FRONT FLOOR COVER LH |
| *7 |
NO. 1 ENGINE UNDER COVER |
*8 |
NO. 2 ENGINE UNDER COVER |
| *9 |
RADIATOR SIDE DEFLECTOR SEAL LH |
*10 |
RADIATOR SIDE SEAL RH |

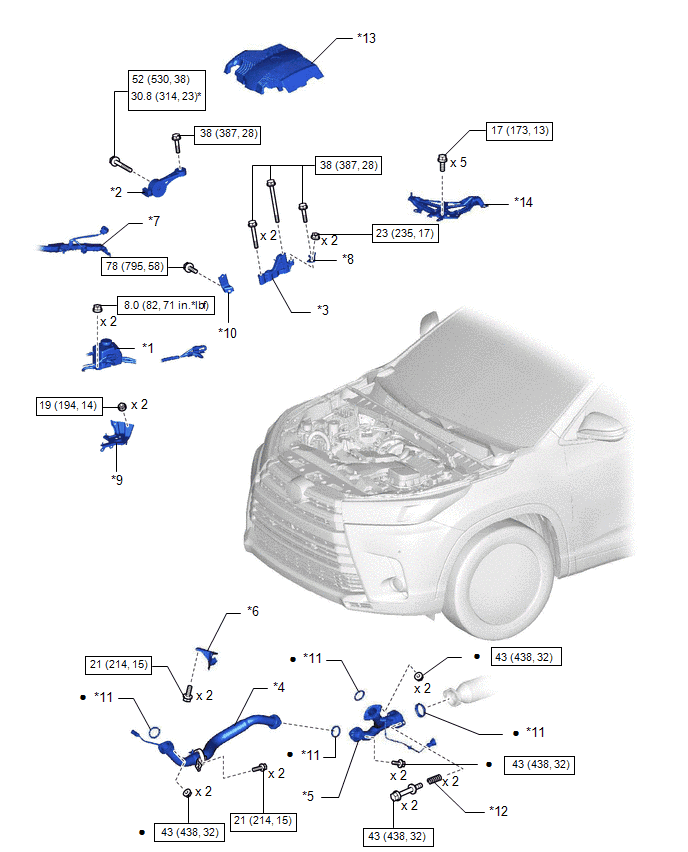

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
*2 |
ENGINE MOVING CONTROL ROD |
| *3 |
ENGINE MOVING CONTROL ROD BRACKET |
*4 |
FRONT EXHAUST PIPE ASSEMBLY |
| *5 |
FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY |
*6 |
NO. 1 EXHAUST PIPE SUPPORT BRACKET |
| *7 |
WIRE HARNESS |
*8 |
NO. 2 ENGINE MOUNTING STAY RH (for Engine Mounting Stay Side) |
| *9 |
RESERVOIR BRACKET |
*10 |
NO. 3 ENGINE MOUNTING STAY RH |
| *11 |
GASKET |
*12 |
COMPRESSION SPRING |
| *13 |
V-BANK COVER SUB-ASSEMBLY |
*14 |
INVERTER TRAY BRACKET SUB-ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| * |
For use with SST |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

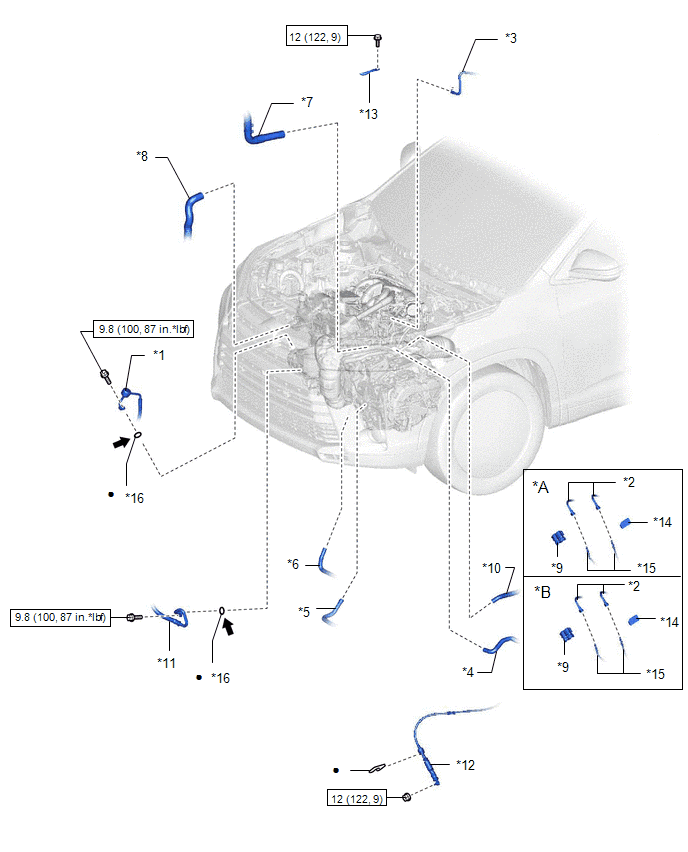

| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
for Type B |
| *1 |
DISCHARGE HOSE SUB-ASSEMBLY |
*2 |
FUEL TUBE SUB-ASSEMBLY |
| *3 |
FUEL VAPOR FEED HOSE ASSEMBLY |
*4 |
WATER HOSE SUB-ASSEMBLY |
| *5 |
NO. 3 MOTOR COOLING HOSE |
*6 |
NO. 1 MOTOR COOLING HOSE |
| *7 |
NO. 1 RADIATOR HOSE |
*8 |
NO. 2 RADIATOR HOSE |
| *9 |
FUEL PIPE CLAMP |
*10 |
HEATER WATER HOSE |
| *11 |
SUCTION HOSE SUB-ASSEMBLY |
*12 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *13 |
NO. 3 EARTH WIRE |
*14 |
NO. 2 FUEL PIPE CLAMP |
| *15 |
FUEL PIPE |
*16 |
O-RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Compressor oil ND-OIL 11 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

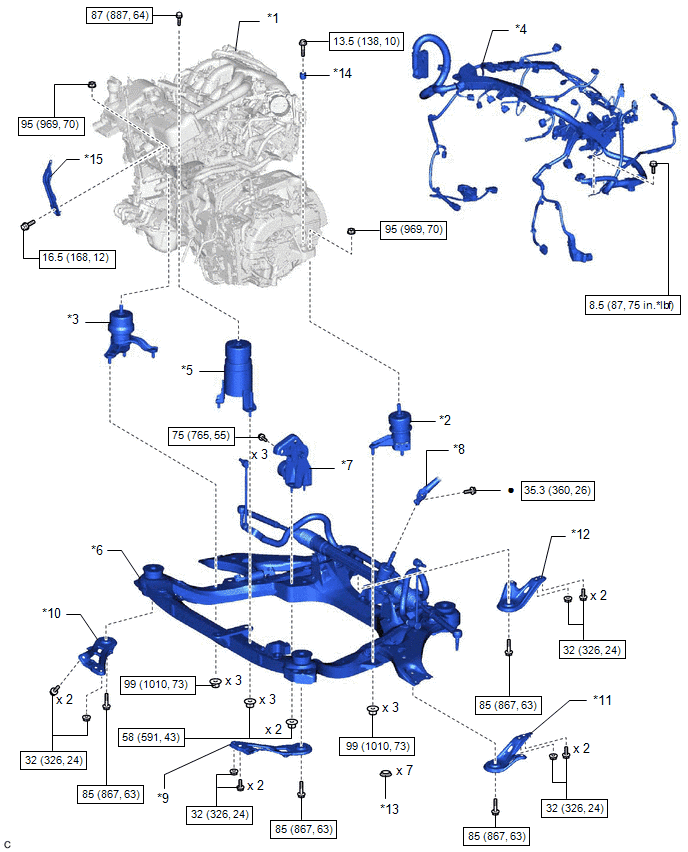

| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*2 |
ENGINE MOUNTING INSULATOR LH |
| *3 |
ENGINE MOUNTING INSULATOR RH |
*4 |
ENGINE WIRE |
| *5 |
FRONT ENGINE MOUNTING INSULATOR |
*6 |
FRONT FRAME ASSEMBLY |
| *7 |
REAR ENGINE MOUNTING INSULATOR |
*8 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *9 |
FRAME SIDE RAIL PLATE LH |
*10 |
FRAME SIDE RAIL PLATE RH |
| *11 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
*12 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
| *13 |
HOLE PLUG |
*14 |
HV TRANSAXLE MASS DAMPER |
| *15 |
WIRE HARNESS BRACKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

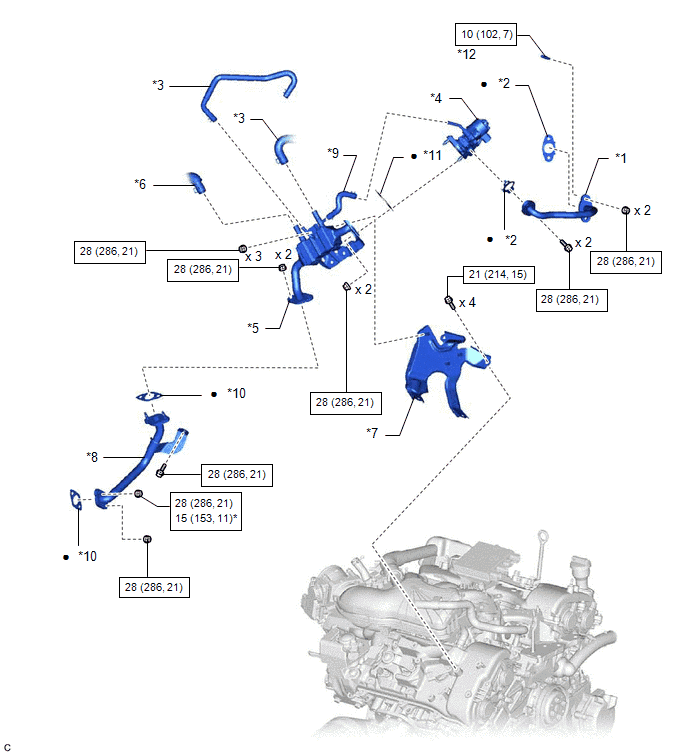

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 2 EGR PIPE |
*2 |
NO. 2 EGR PIPE GASKET |
| *3 |
WATER BY-PASS HOSE ASSEMBLY |
*4 |
EGR VALVE ASSEMBLY |
| *5 |
EGR COOLER ASSEMBLY |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
EGR COOLER BRACKET |
*8 |
NO. 1 EGR PIPE |
| *9 |
NO. 9 WATER BY-PASS HOSE |
*10 |
EGR INLET GASKET |
| *11 |
EGR VALVE GASKET |
*12 |
STUD BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
| * |
For use with SST |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

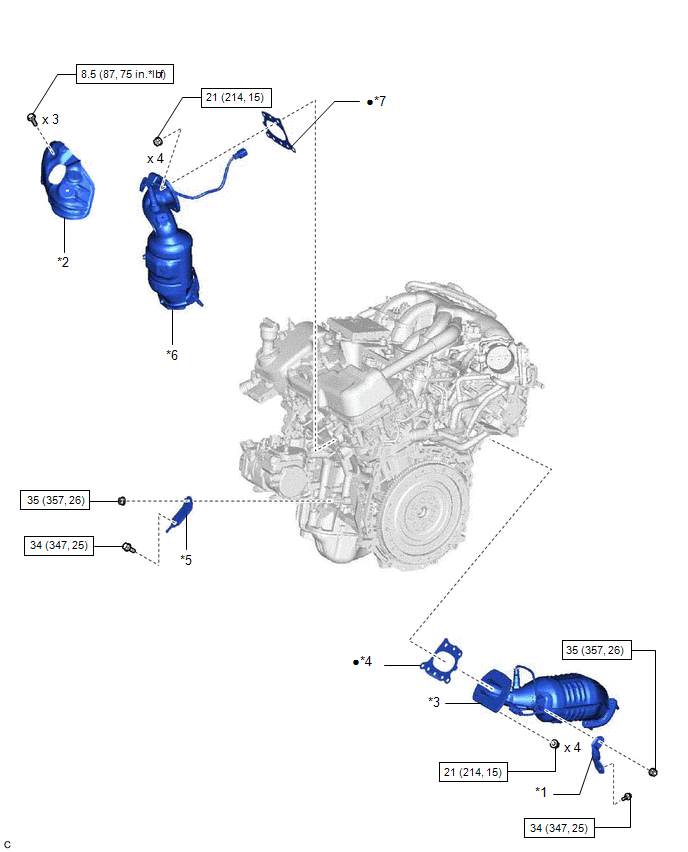

| Callout |
Description |
Callout |
Description |
| *1 |
MANIFOLD STAY |
*2 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *3 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*4 |
EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1) |
| *5 |
NO. 2 MANIFOLD STAY |
*6 |
EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst) |
| *7 |
EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

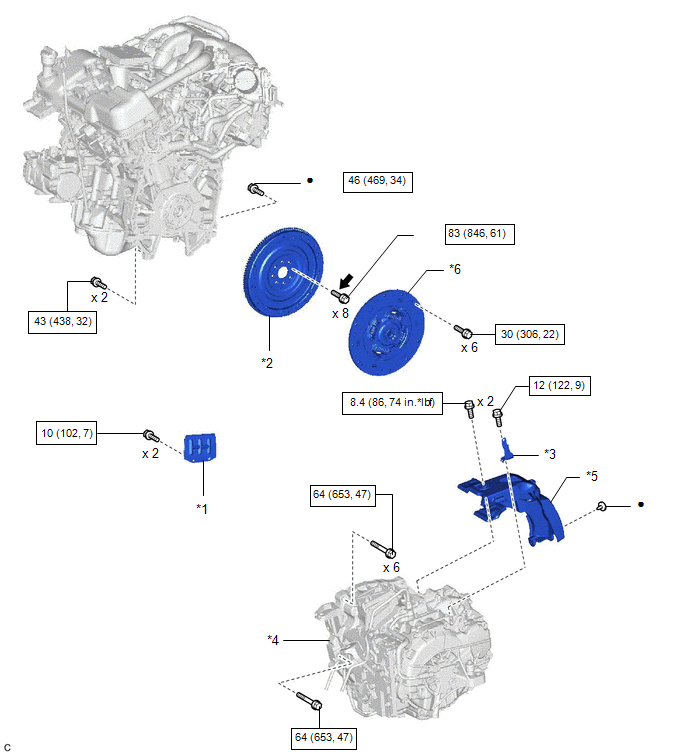

| Callout |
Description |
Callout |
Description |
| *1 |
FLYWHEEL HOUSING UNDER COVER |
*2 |
FLYWHEEL SUB-ASSEMBLY |
| *3 |
MOTOR CABLE BRACKET |
*4 |
HYBRID VEHICLE TRANSAXLE ASSEMBLY |
| *5 |
NO. 3 AUTOMATIC TRANSMISSION CASE COVER |
*6 |
TRANSMISSION INPUT DAMPER ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
