Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

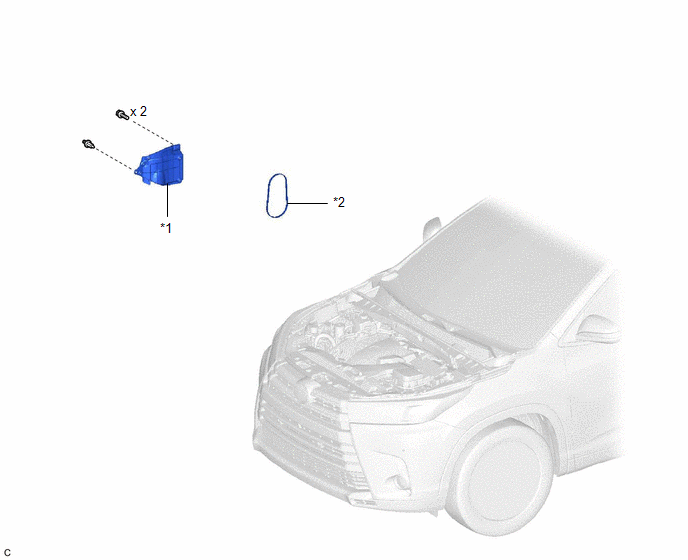

Fig 1: Drive Belt Replacement Components
GTY708531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER APRON SEAL RH *2 V-RIBBED BELT
