Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

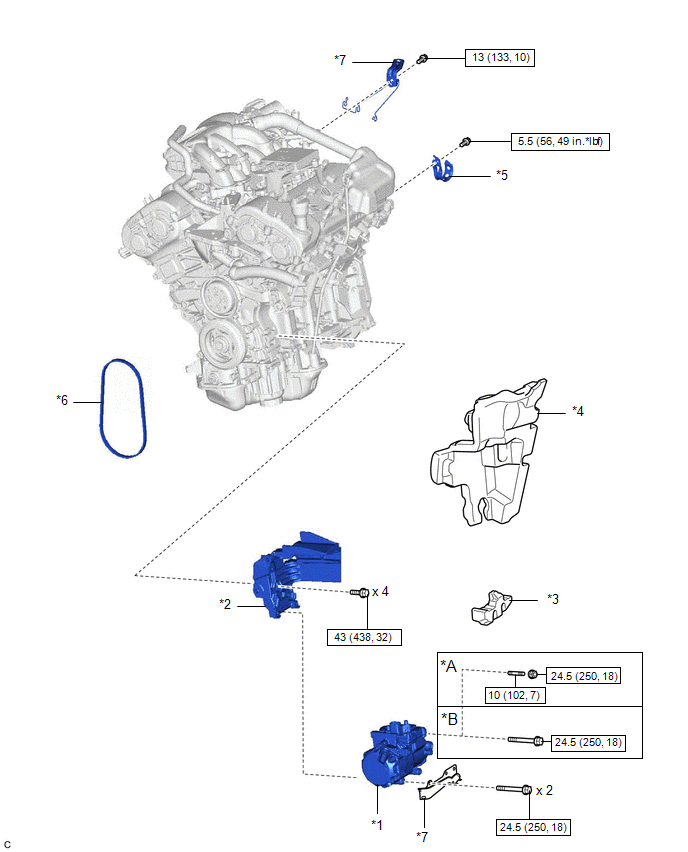

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 12)
GTY704568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 COMPRESSOR WITH MOTOR ASSEMBLY *2 NO. 1 COMPRESSOR MOUNTING BRACKET
*3 NO. 4 CYLINDER BLOCK INSULATOR *4 NO. 5 CYLINDER BLOCK INSULATOR
*5 RADIATOR PIPE CLAMP *6 V-RIBBED BELT
*7 WIRE HARNESS CLAMP BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 12)
GTY727025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL TUBE SUB-ASSEMBLY *2 INJECTOR DRIVER
*3 INTAKE AIR SURGE TANK ASSEMBLY *4 INTAKE MANIFOLD
*5 NO. 2 ENGINE MOUNTING STAY RH *6 NO. 2 SURGE TANK STAY
*7 THROTTLE BODY GASKET *8 THROTTLE BODY WITH MOTOR ASSEMBLY
*9 AIR SURGE TANK TO INTAKE MANIFOLD GASKET *10 NO. 1 INTAKE MANIFOLD TO HEAD GASKET
*11 WATER HOSE CLAMP *12 NO. 2 WATER BY-PASS HOSE
*13 NO. 3 WATER BY-PASS HOSE *14 STUD BOLT
*15 VENTILATION HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

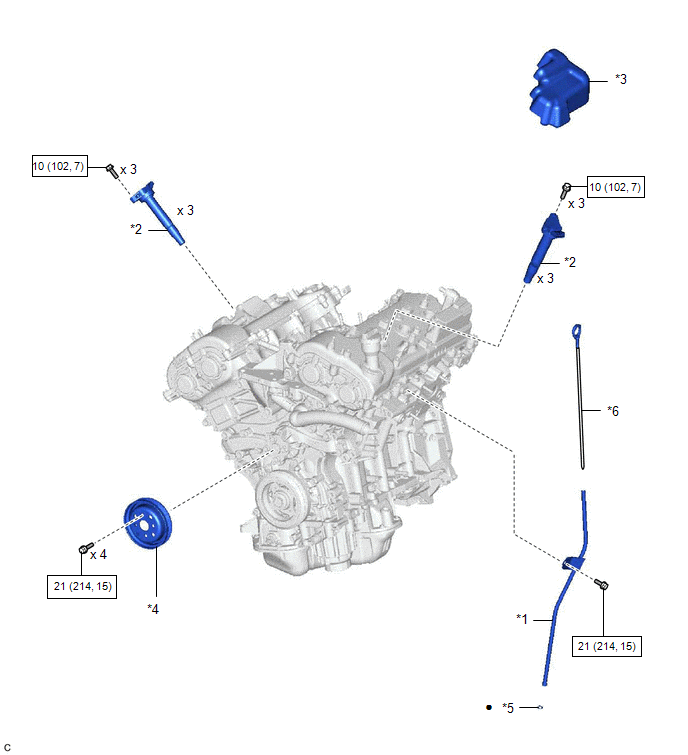

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 12)
GTY734420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 IGNITION COIL ASSEMBLY
*3 NO. 1 ENGINE COVER *4 WATER PUMP PULLEY
*5 ENGINE OIL LEVEL DIPSTICK GUIDE O-RING *6 ENGINE OIL LEVEL DIPSTICK
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

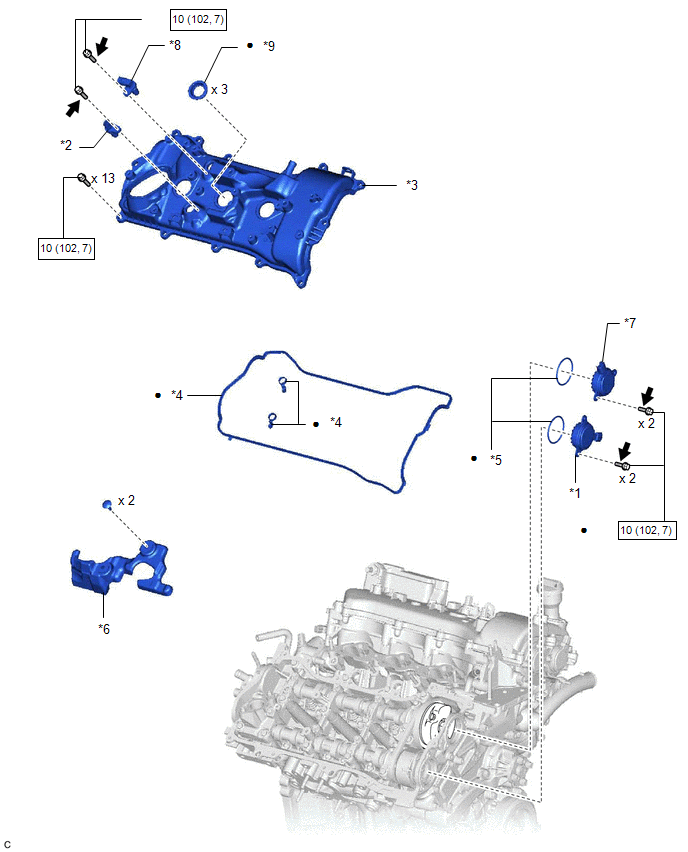

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (4 Of 12)
GTY756630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) *2 VVT SENSOR (for Exhaust Side of Bank 1)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY *4 CYLINDER HEAD COVER GASKET
*5 O-RING *6 NO. 1 ENGINE COVER SUB-ASSEMBLY
*7 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) *8 VVT SENSOR (for Intake Side of Bank 1)
*9 SPARK PLUG TUBE GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

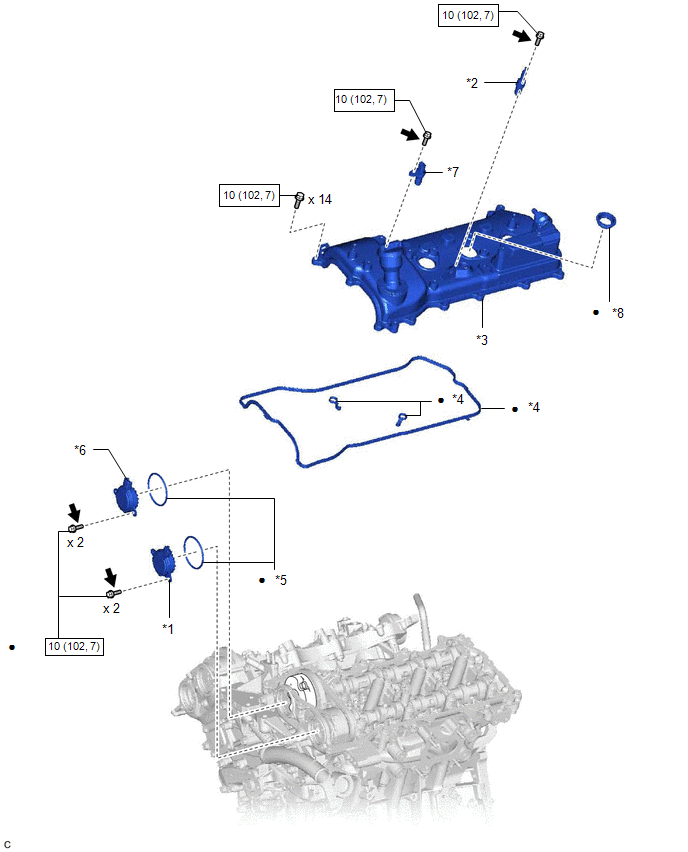

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 12)
GTY753775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) *2 VVT SENSOR (for Exhaust Side of Bank 2)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY LH *4 NO. 2 CYLINDER HEAD COVER GASKET
*5 O-RING *6 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
*7 VVT SENSOR (for Intake Side of Bank 2) *8 SPARK PLUG TUBE GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

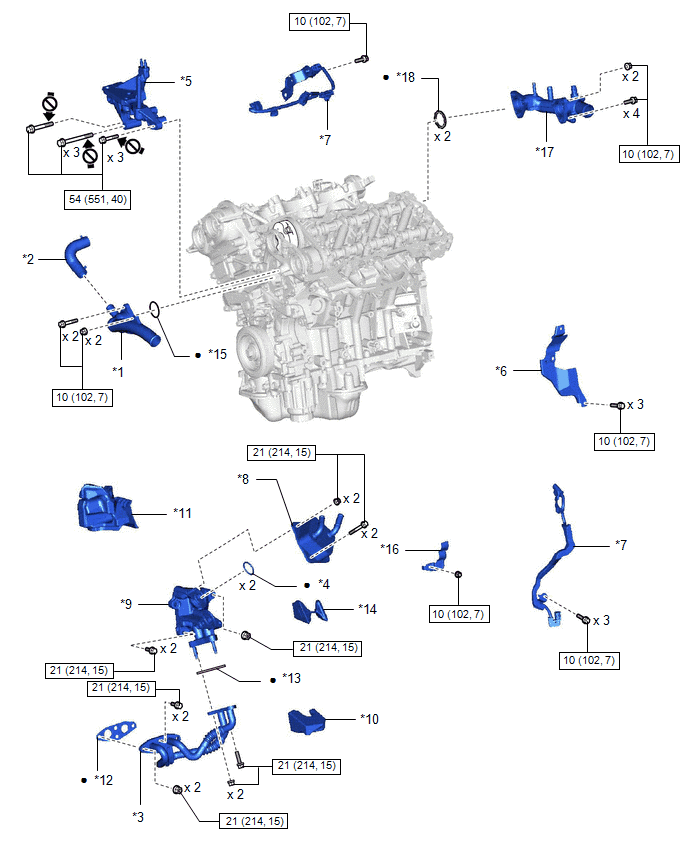

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (6 Of 12)
GTY732093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY *2 WATER BY-PASS HOSE
*3 OIL COOLER PIPE *4 O-RING
*5 FRONT NO. 1 ENGINE MOUNTING BRACKET LH *6 CRANKSHAFT POSITION SENSOR PROTECTOR
*7 SENSOR WIRE *8 OIL COOLER ASSEMBLY
*9 NO. 1 OIL COOLER BRACKET *10 NO. 3 CYLINDER BLOCK INSULATOR
*11 NO. 2 CYLINDER BLOCK INSULATOR *12 OIL HOLE COVER GASKET
*13 OIL COOLER GASKET *14 NO. 1 CYLINDER BLOCK INSULATOR
*15 GASKET *16 HOSE CLAMP
*17 WATER OUTLET *18 NO. 2 WATER INLET HOUSING GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

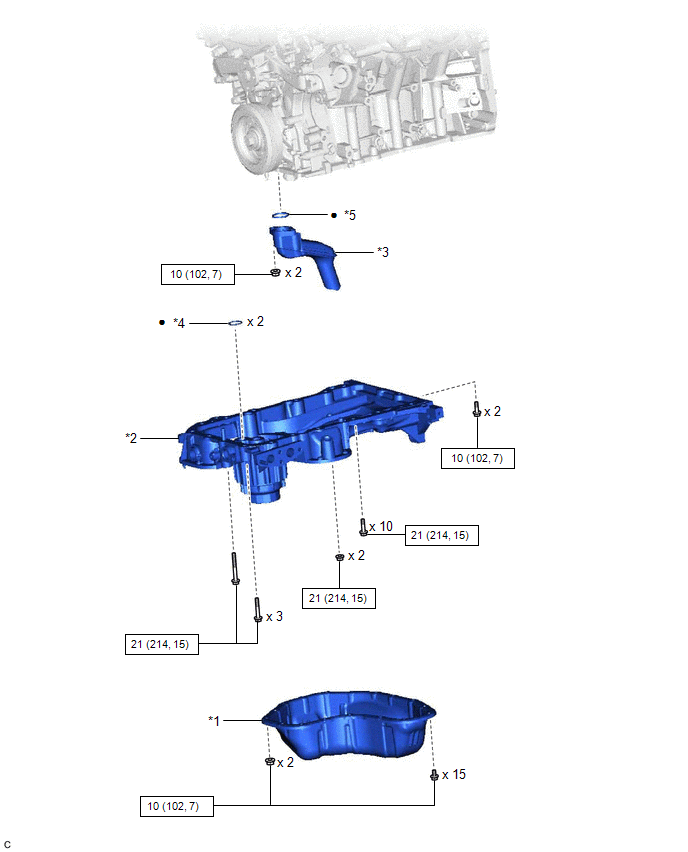

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (7 Of 12)
GTY694204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 OIL PAN SUB-ASSEMBLY *2 OIL PAN SUB-ASSEMBLY
*3 OIL STRAINER SUB-ASSEMBLY *4 OIL PAN GASKET
*5 OIL STRAINER GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

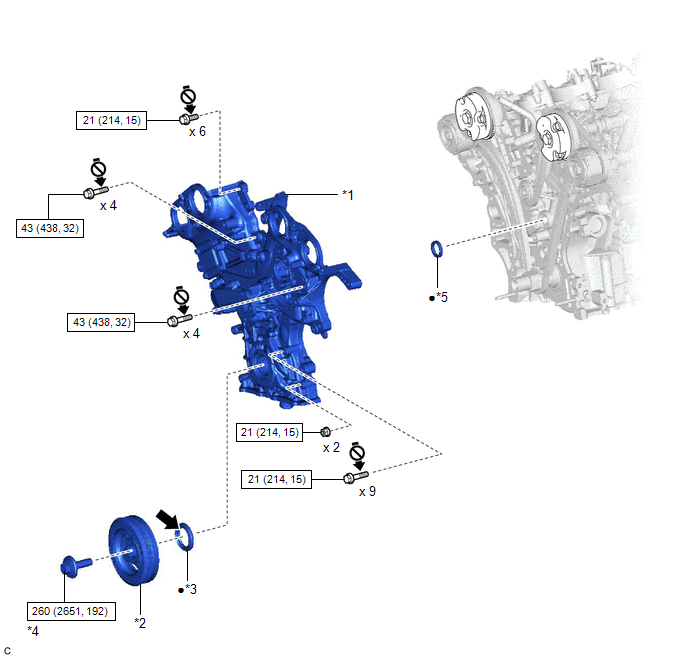

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (8 Of 12)
GTY622014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TIMING CHAIN COVER ASSEMBLY *2 CRANKSHAFT PULLEY
*3 TIMING CHAIN CASE OIL SEAL *4 CRANKSHAFT PULLEY SET BOLT
*5 OIL PUMP GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Do not apply lubricants to the threaded parts

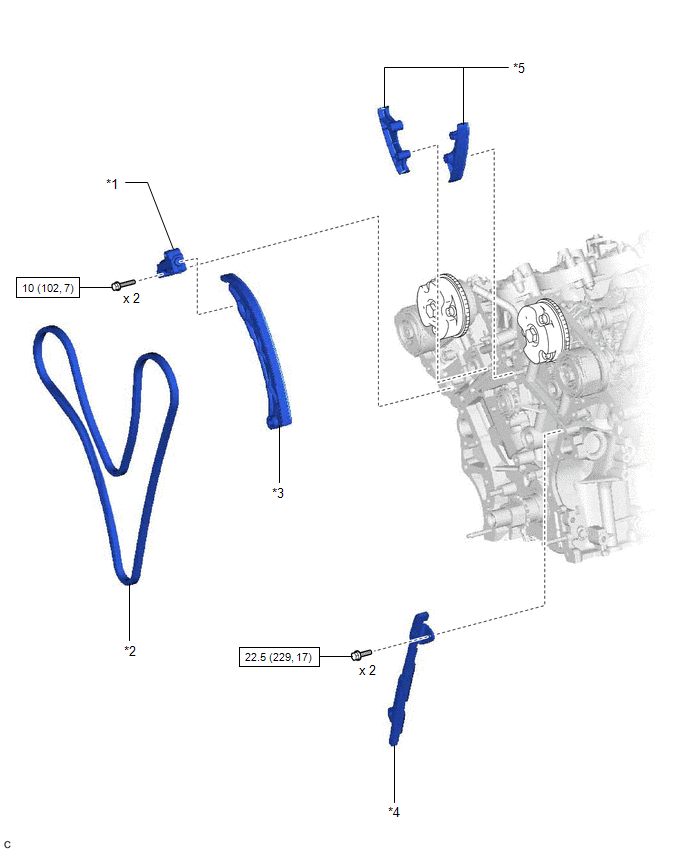

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (9 Of 12)
GTY677205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 CHAIN TENSIONER ASSEMBLY *2 CHAIN SUB-ASSEMBLY
*3 CHAIN TENSIONER SLIPPER *4 NO. 1 CHAIN VIBRATION DAMPER
*5 NO. 2 CHAIN VIBRATION DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

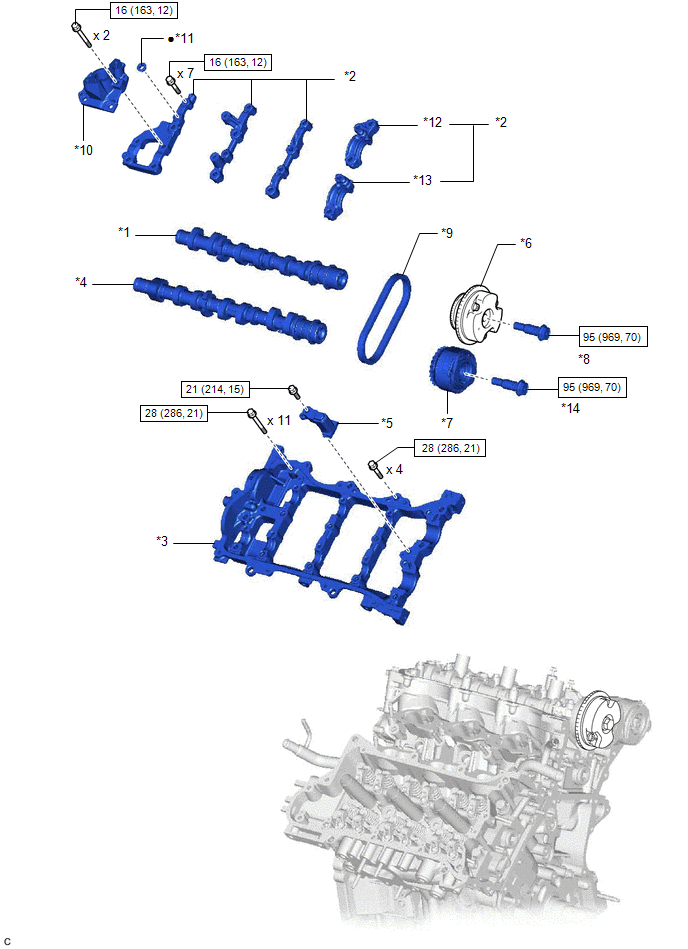

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (10 Of 12)
GTY704182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 CAMSHAFT BEARING CAP (for Bank 1)
*3 CAMSHAFT HOUSING SUB-ASSEMBLY *4 NO. 2 CAMSHAFT
*5 NO. 2 CHAIN TENSIONER ASSEMBLY *6 CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1)
*7 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) *8 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1)
*9 NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) *10 FUEL PUMP LIFTER HOUSING
*11 CAMSHAFT BEARING CAP OIL HOLE GASKET *12 NO. 1 CAMSHAFT BEARING CAP
*13 NO. 2 CAMSHAFT BEARING CAP *14 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1)
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

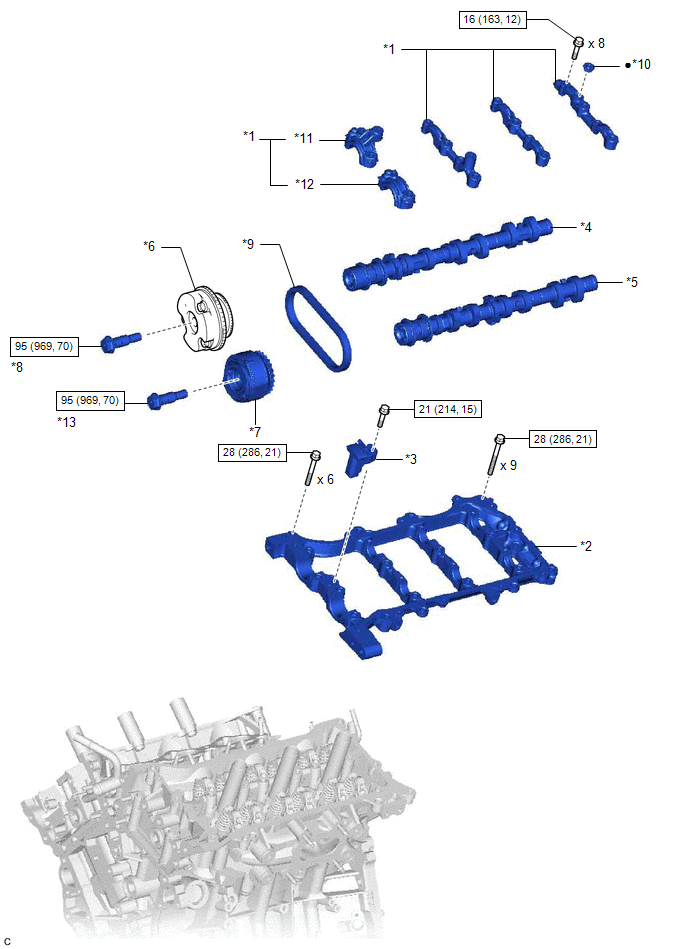

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (11 Of 12)
GTY699173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT BEARING CAP (for Bank 2) *2 CAMSHAFT HOUSING SUB-ASSEMBLY LH
*3 NO. 3 CHAIN TENSIONER ASSEMBLY *4 NO. 3 CAMSHAFT SUB-ASSEMBLY
*5 NO. 4 CAMSHAFT SUB-ASSEMBLY *6 CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2)
*7 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) *8 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2)
*9 NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) *10 CAMSHAFT BEARING CAP OIL HOLE GASKET
*11 NO. 3 CAMSHAFT BEARING CAP *12 NO. 4 CAMSHAFT BEARING CAP
*13 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

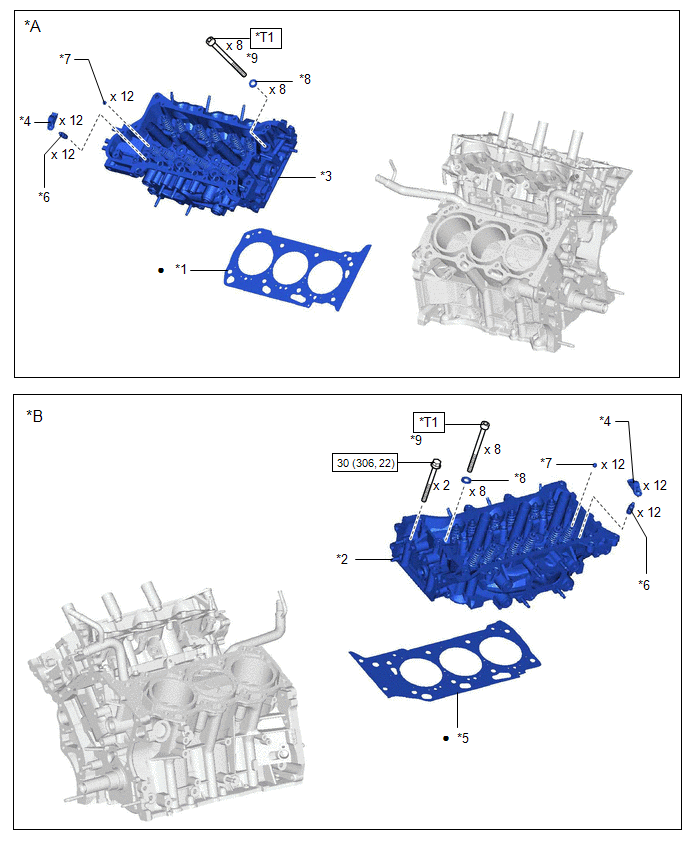

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (12 Of 12)
GTY693009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 1 *B for Bank 2
*1 CYLINDER HEAD GASKET *2 CYLINDER HEAD LH
*3 CYLINDER HEAD SUB-ASSEMBLY *4 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5 NO. 2 CYLINDER HEAD GASKET *6 VALVE LASH ADJUSTER ASSEMBLY
*7 VALVE STEM CAP *8 CYLINDER HEAD SET PLATE WASHER
*9 CYLINDER HEAD SET BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90°		 - -
