Components [11/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

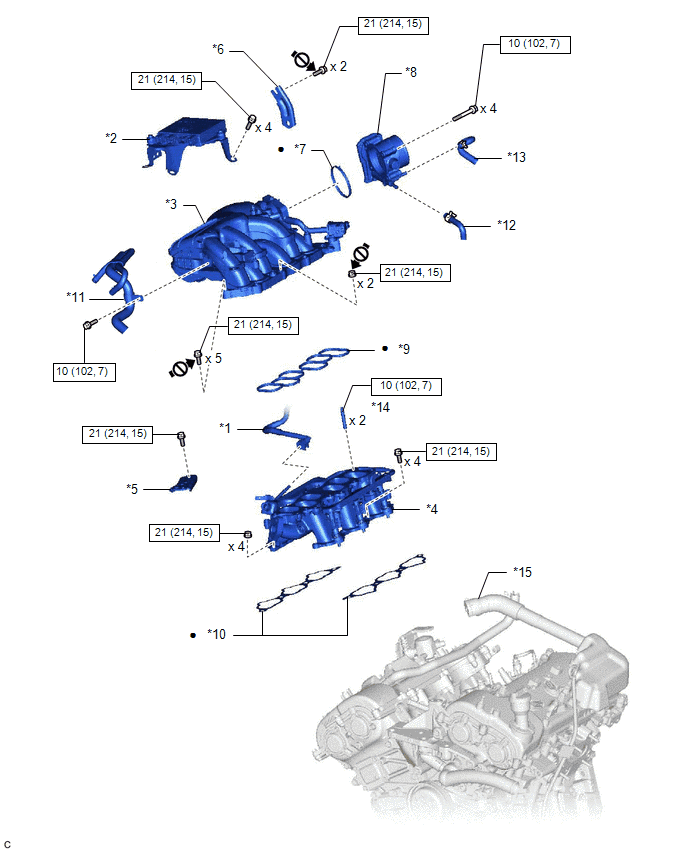

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FUEL TUBE SUB-ASSEMBLY |
*2 |
INJECTOR DRIVER |
| *3 |
INTAKE AIR SURGE TANK ASSEMBLY |
*4 |
INTAKE MANIFOLD |
| *5 |
NO. 2 ENGINE MOUNTING STAY RH |
*6 |
NO. 2 SURGE TANK STAY |
| *7 |
THROTTLE BODY GASKET |
*8 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
| *9 |
AIR SURGE TANK TO INTAKE MANIFOLD GASKET |
*10 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *11 |
WATER HOSE CLAMP |
*12 |
NO. 2 WATER BY-PASS HOSE |
| *13 |
NO. 3 WATER BY-PASS HOSE |
*14 |
STUD BOLT |
| *15 |
VENTILATION HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Do not apply lubricants (to the threaded parts) |
- |
- |

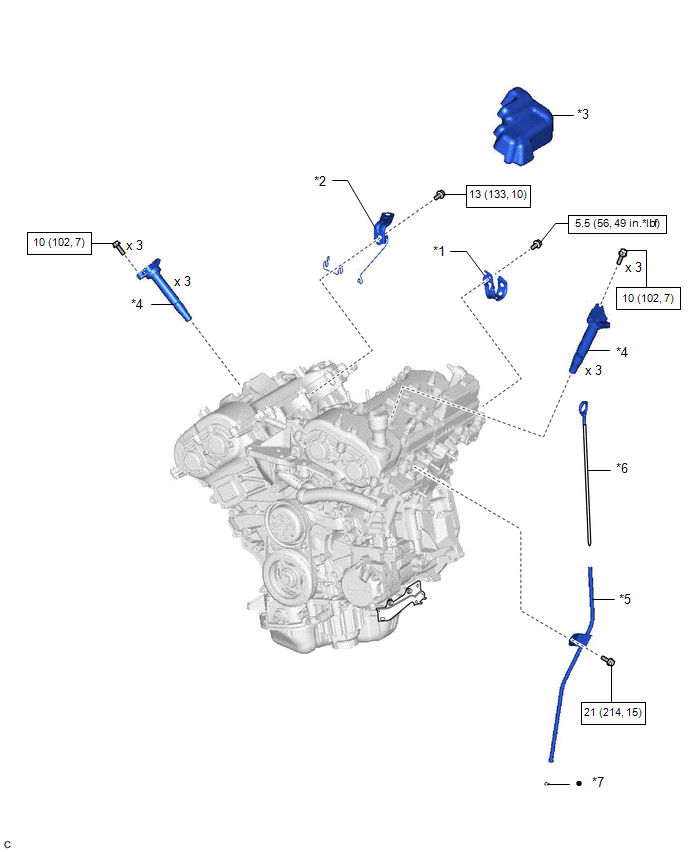

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
RADIATOR PIPE CLAMP |
*2 |
WIRE HARNESS CLAMP BRACKET |
| *3 |
NO. 1 ENGINE COVER |
*4 |
IGNITION COIL ASSEMBLY |
| *5 |
ENGINE OIL LEVEL DIPSTICK GUIDE |
*6 |
ENGINE OIL LEVEL DIPSTICK |
| *7 |
ENGINE OIL LEVEL DIPSTICK GUIDE O-RING |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |

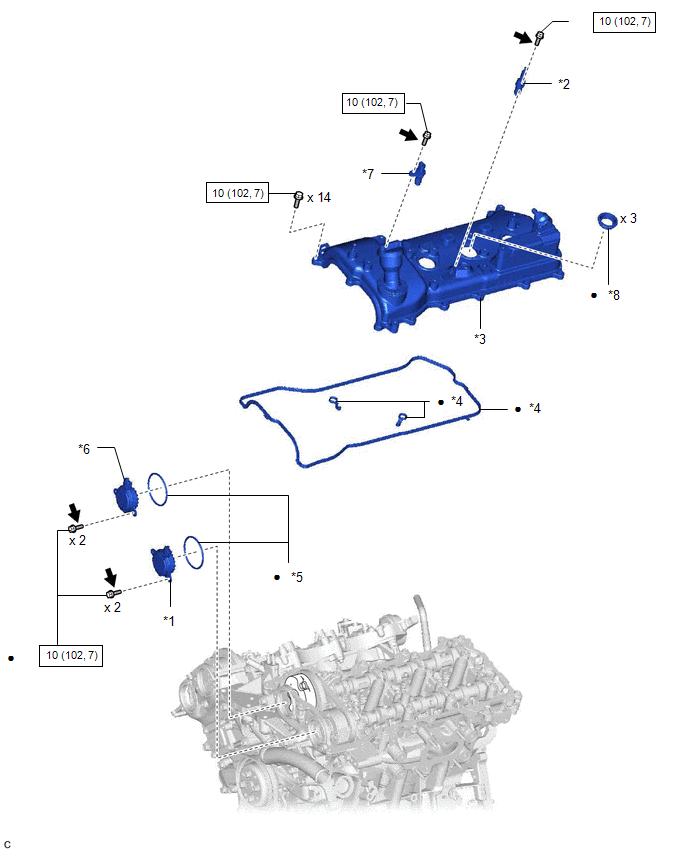

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
*2 |
VVT SENSOR (for Exhaust Side of Bank 1) |
| *3 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*4 |
CYLINDER HEAD COVER GASKET |
| *5 |
O-RING |
*6 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*8 |
VVT SENSOR (for Intake Side of Bank 1) |
| *9 |
SPARK PLUG TUBE GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |

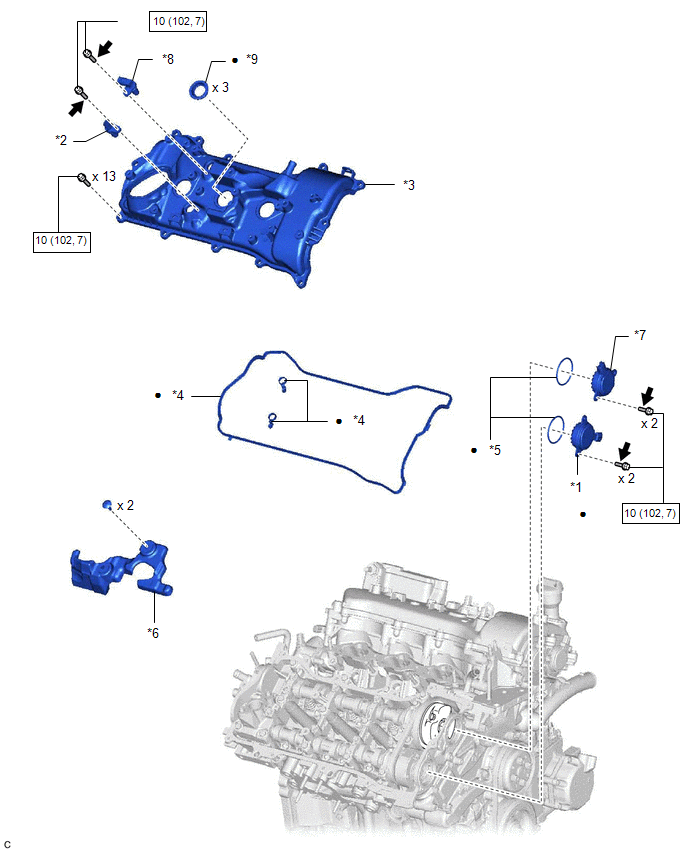

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
*2 |
VVT SENSOR (for Exhaust Side of Bank 2) |
| *3 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*4 |
NO. 2 CYLINDER HEAD COVER GASKET |
| *5 |
O-RING |
*6 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
| *7 |
VVT SENSOR (for Intake Side of Bank 2) |
*8 |
SPARK PLUG TUBE GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |

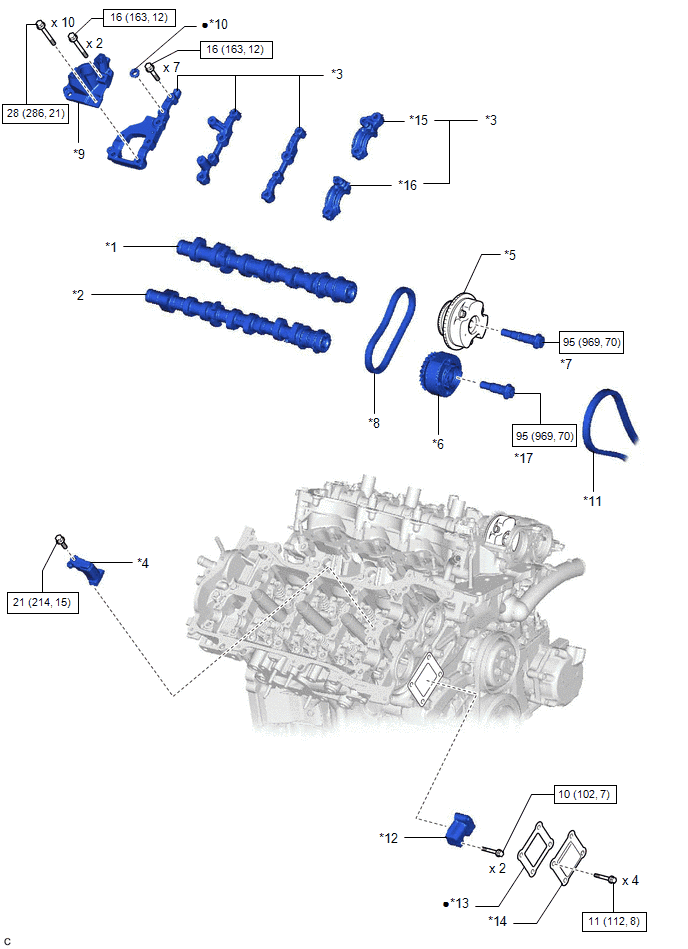

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CAMSHAFT |
*2 |
NO. 2 CAMSHAFT |
| *3 |
CAMSHAFT BEARING CAP (for Bank 1) |
*4 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 1) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 1) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
| *9 |
FUEL PUMP LIFTER HOUSING |
*10 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *11 |
CHAIN SUB-ASSEMBLY |
*12 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
| *13 |
TIMING CHAIN COVER GASKET |
*14 |
TIMING CHAIN COVER PLATE |
| *15 |
NO. 1 CAMSHAFT BEARING CAP |
*16 |
NO. 2 CAMSHAFT BEARING CAP |
| *17 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |

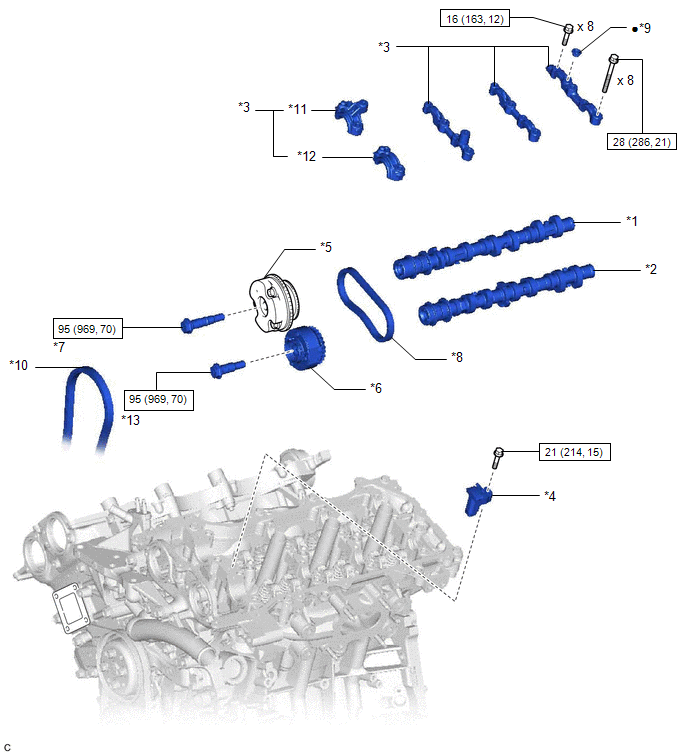

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*2 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *3 |
CAMSHAFT BEARING CAP (for Bank 2) |
*4 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *5 |
CAMSHAFT TIMING GEAR ASSEMBLY (for Bank 2) |
*6 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY (for Bank 2) |
| *7 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
*8 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
| *9 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
*10 |
CHAIN SUB-ASSEMBLY |
| *11 |
NO. 3 CAMSHAFT BEARING CAP |
*12 |
NO. 4 CAMSHAFT BEARING CAP |
| *13 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
