Removal [11/2016 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. DISCONNECT VENTILATION HOSE
    1. Slide the clip and disconnect the ventilation hose from the PCV valve (ventilation valve sub-assembly).

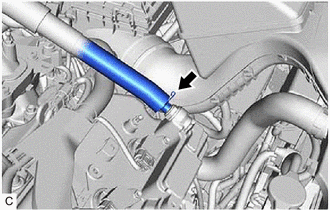

      GTY703811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. Using a 22 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly LH.

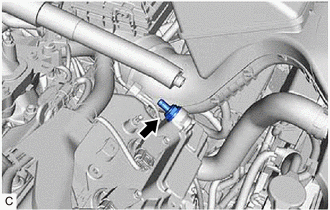

      GTY703813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
