Removal [12/2013 - 11/2016]: Procedure

REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

Using a 6 mm hexagon socket wrench, loosen the 6 cross groove joint set bolts 1/2 turn.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Piece of Cloth

NOTE:

Put a piece of cloth or equivalent into the inside of the universal joint cover so that the boot does not touch the inside of the universal joint cover.
Do not remove the cross groove joint set bolts.

Put matchmarks on the electro magnetic control coupling sub-assembly and propeller with center bearing shaft assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

Remove the 4 nuts and 4 washers.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

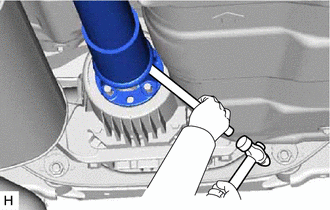

Using a brass bar and a hammer, separate the propeller with center bearing shaft assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Use wire or an equivalent tool to keep the propeller with center bearing shaft assembly.

Remove the 4 bolts and 4 No. 2 center support bearing washers.

NOTE:

When removing the bolts and No. 2 center support bearing washers, do not apply excessive force to the universal joint.

Pull out the propeller with center bearing shaft assembly from the transfer assembly.
NOTE:
- When removing the propeller with center bearing shaft assembly, do not apply excessive force to the universal joint.
- During and after the removal of the propeller with center bearing shaft assembly, keep the universal joint angle straight (within 15 degrees).
- Be careful not to damage the transfer case rear oil seal.

Insert SST in the transfer assembly to prevent oil leakage.

NOTE:

Be careful not to damage the transfer extension housing type T oil seal.
