Wheel Opening Moulding Components Overview (Rear) [12/2013 - ]

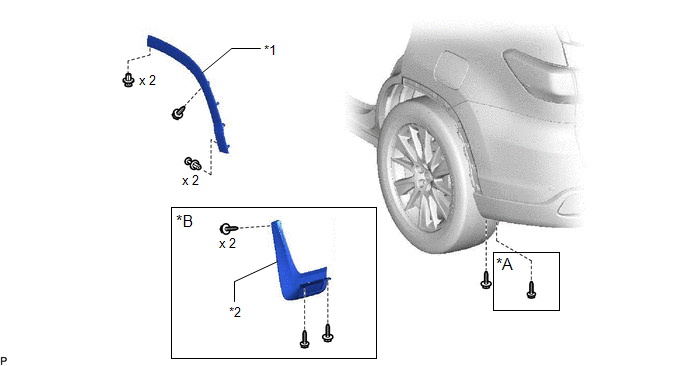

Fig 1: Wheel Opening Moulding (Rear) Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Mudguard	*B	w/ Mudguard
*1	QUARTER PANEL WHEEL OPENING MOULDING	*2	REAR QUARTER PANEL MUDGUARD
