Removal [12/2013 - ]: Procedure

HINT:

Use the same procedure for all the No. 1 roof side garnish lids.

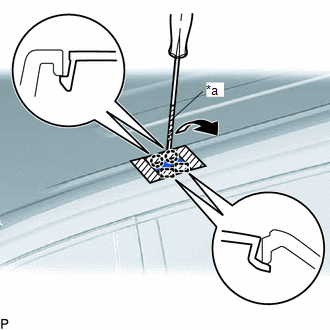

1. Apply protective tape around the No. 1 roof side garnish lid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Protective Tape

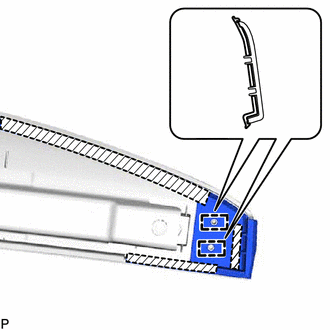

2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.
3. Disengage the guide to remove the No. 1 roof side garnish lid.

HINT:

Use the same procedure for all the No. 2 roof side garnish lids.

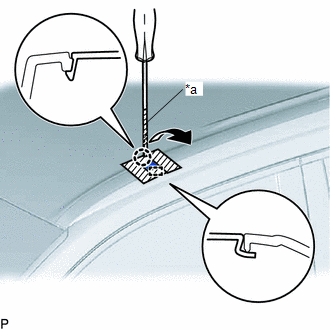

1. Apply protective tape around the No. 2 roof side garnish lid.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   	Protective Tape

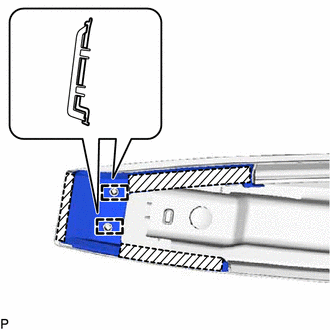

2. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration.
3. Disengage the 2 guides to remove the No. 2 roof side garnish lid.

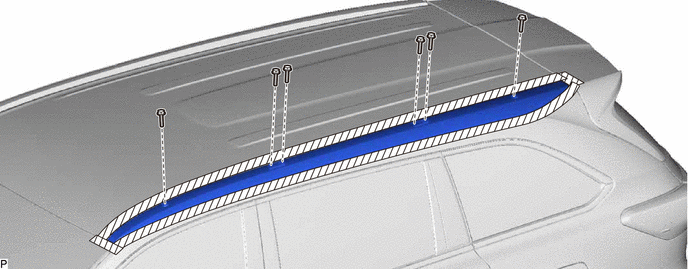

1. Apply protective tape around the roof rack assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   -

   -

2. Remove the 6 bolts and roof rack assembly.
3. Remove the 6 No. 2 roof carrier seals.

1. Remove the No. 1 roof carrier protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 3 roof carrier protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Separate the double-sided tape and disengage the 2 guides to remove the front roof rack leg cushion.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

1. Separate the double-sided tape and disengage the 2 guides to remove the rear roof rack leg cushion.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape
