Roof Rack Components Overview [12/2013 - ]

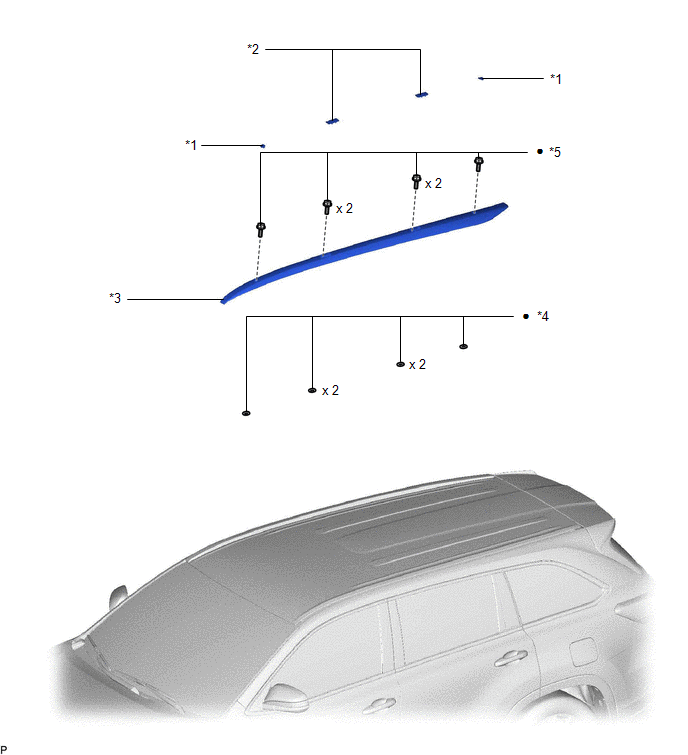

Fig 1: Roof Rack Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ROOF SIDE GARNISH LID	*2	NO. 2 ROOF SIDE GARNISH LID
*3	ROOF RACK ASSEMBLY	*4	NO. 2 ROOF CARRIER SEAL
*5	BOLT	-	-
•	Non-reusable part	-	-

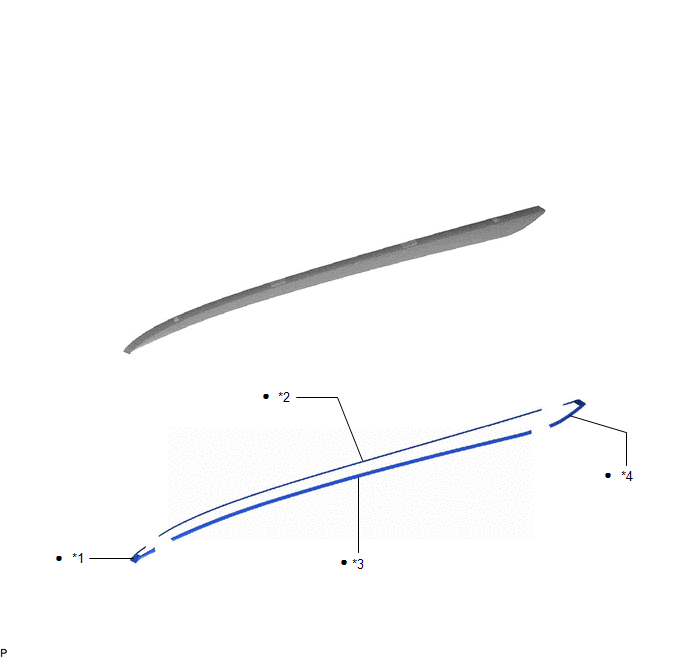

Fig 2: Roof Rack Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT ROOF RACK LEG CUSHION	*2	NO. 1 ROOF CARRIER PROTECTOR
*3	NO. 3 ROOF CARRIER PROTECTOR	*4	REAR ROOF RACK LEG CUSHION
•	Non-reusable part	-	-
