Removal [12/2013 - ]: Procedure

  1. REMOVE REAR WHEEL HOUSE PAD
    1. Remove the 2 screws.

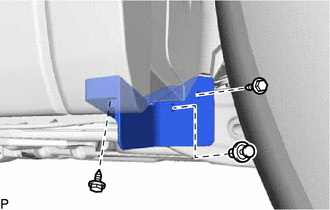

      GTY424036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and rear wheel house pad.
