Reassembly [12/2013 - ]: Procedure

1. Engage the 3 claws to install the rear spoiler cover LH.

HINT:

Use the same procedure as for the LH side.

1. Clean off any tape adhesive residue with cleaner.
2. Remove the release paper from a new No. 3 rear spoiler protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

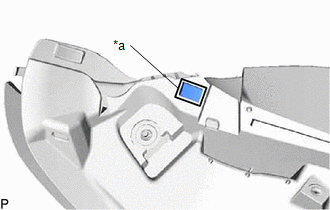

3. Install the No. 3 rear spoiler protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   HINT:

   • Apply the No. 3 rear spoiler protector along the line marked on the rear spoiler.
   • Use the same procedure for the RH side and LH side.

1. Clean off any tape adhesive residue with cleaner.
2. Remove the release paper from a new No. 2 rear spoiler protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

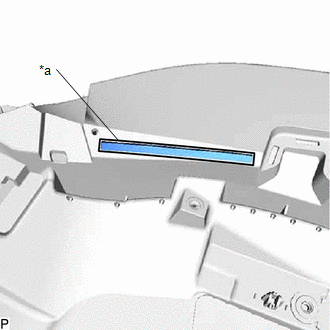

3. Install the No. 2 rear spoiler protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   HINT:

   • Apply the No. 2 rear spoiler protector along the line marked on the rear spoiler.
   • Use the same procedure for the RH side and LH side.

1. Clean off any tape adhesive residue with cleaner.
2. Remove the release paper from 3 new No. 1 rear spoiler protectors.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

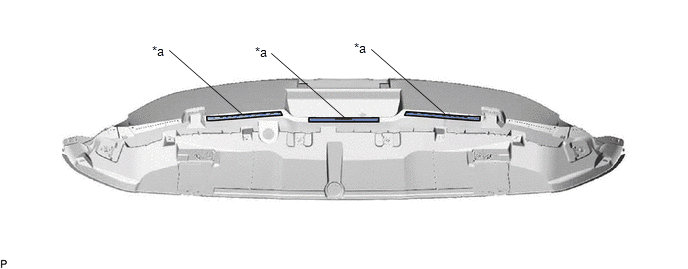

3. Install the 3 No. 1 rear spoiler protectors as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   -

   -

   HINT:

   Apply the No. 1 rear spoiler protector along the line marked on the rear spoiler.

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 1
