Reassembly [12/2016 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 rear bumper reinforcement with the 6 nuts.

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/o Mudguard

   w/o Mud guard:

   1. Install the screw.
2. Install the rear bumper side seal LH with the 4 clips.

HINT:

Use the same procedure as for the LH side.

1. Engage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the 3 clips as shown in the illustration.
3. Install the rear bumper side support LH with the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure for the RH side and LH side.

1. Clean the installation surface of the No. 2 moulding tape.
   1. Remove any remaining double-sided tape from the rear bumper cover.
      NOTE:

      • If there is any foreign matter on the rear bumper cover when the No. 2 moulding tape is installed, adhesion failure may occur.
      • Do not use a screwdriver or other tool to remove the double-sided tape as the rear bumper cover may be damaged, possibly leading to adhesion failure.
   2. Wipe off any tape adhesive residue with cleaner.
2. Install a new No. 2 moulding tape.
   WARNING:

   • Do not touch the heat light, as doing so may cause in burns.
   • Touching heated parts for a long time may result in burns.

   HINT:

   If the temperature of the No. 2 moulding tape or its installation surface on the rear bumper cover is below 15°C (59°F), adhesion failure may occur. Use a heat light to heat the No. 2 moulding tape and its installation surface on the rear bumper cover to the recommended temperature (15 to 40°C (59 to 104°F)).

   1. Remove the release paper from the No. 2 moulding tape.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

   2. Install the No. 2 moulding tape to the rear bumper cover as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Line

      NOTE:

      If the No. 2 moulding tape has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.

      HINT:

      Make sure not to touch the exposed adhesive of the No. 2 moulding tape or the installation surface on the rear bumper cover.

   3. Using a squeegee, evenly press the No. 2 moulding tape to the rear bumper cover with a force of 29 N (3 kgf, 6.5lbf) or more.

      HINT:

      • Make sure that the corners of the No. 2 moulding tape are not damaged or peeling off.
      • After installing the No. 2 moulding tape, leave the rear bumper cover in an area with an ambient temperature of 15°C (59°F) or more for 30 minutes or more to allow the adhesive to set.
   4. Remove the protector sheet from the No. 2 moulding tape.

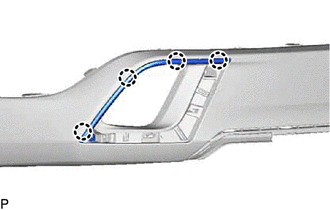

1. Engage the 4 claws to install the rear bumper side moulding LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

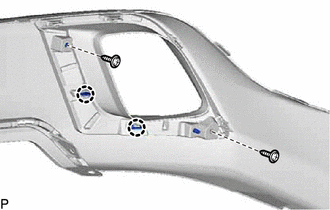

1. Engage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rear bumper extension moulding LH with the 2 screws.

HINT:

Use the same procedure as for the LH side.

1. Engage the 14 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the lower rear bumper cover with the 2 screws.

1. Engage the 2 guides and 10 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 5 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the rear bumper extension with the screw.

Refer to PROCEDURE - Step 2

1. Engage the 7 claws to install the rear bumper energy absorber.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

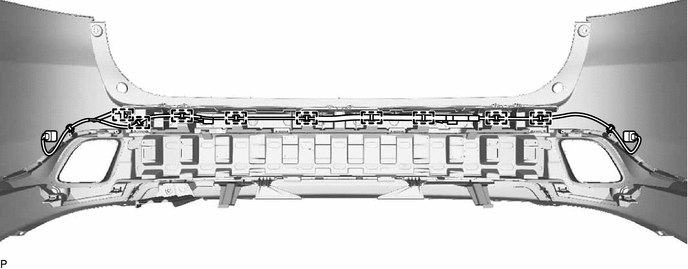

1. Engage the 9 clamps to install the No. 3 luggage room wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 1

for Corner Sensor:

Refer to PROCEDURE - Step 5

for Back Sensor:

Refer to PROCEDURE - Step 6

1. Engage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

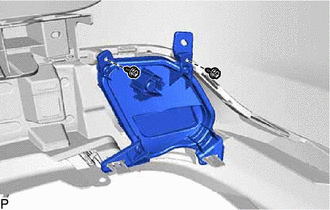

2. Install the reflex reflector assembly LH with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the clamp.

HINT:

Use the same procedure as for the LH side.
