Reassembly [12/2013 - 11/2016]: Procedure

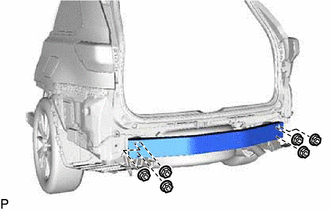

  1. INSTALL NO. 1 REAR BUMPER REINFORCEMENT
    GTY427203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 1 rear bumper reinforcement with the 6 nuts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  2. INSTALL REAR BUMPER SIDE SEAL LH
    1. GTY444691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Mudguard

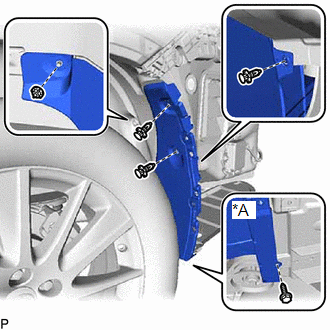

      w/o Mud guard:

      1. Install the screw.
    2. Install the rear bumper side seal LH with the 4 clips.
  3. INSTALL REAR BUMPER SIDE SEAL RH

    HINT:

    Use the same procedure as for the LH side.

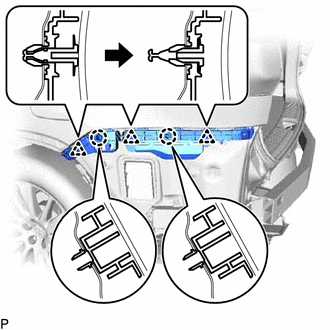

  4. INSTALL REAR BUMPER SIDE SUPPORT LH
    1. Engage the 2 claws.
      GTY451135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 3 clips as shown in the illustration.

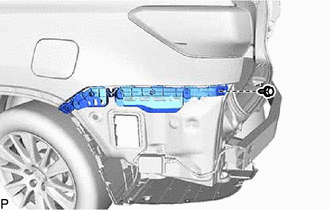

    3. Install the rear bumper side support LH with the screw.
      GTY427196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  6. INSTALL NO. 2 MOULDING TAPE
    1. Clean off any tape adhesive residue with cleaner.
    2. Using a brush or sponge, coat the application area of No. 2 moulding tape with primer.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.

      HINT:

      If an area other than specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    3. Remove the release paper from a new No. 2 moulding tape.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

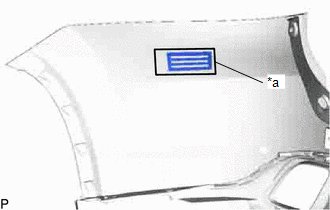

    4. Install the No. 2 moulding tape as shown in the illustration.
      GTY432063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      • Apply the No. 2 moulding tape along the line marked on the rear bumper cover.
      • Use the same procedure for the RH side and LH side.
  7. INSTALL LOWER REAR BUMPER COVER

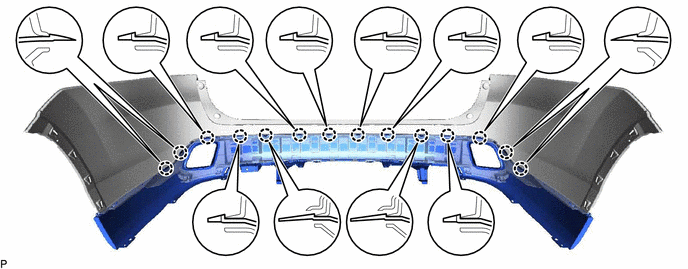

    1. Engage the 14 claws.
      GTY451136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

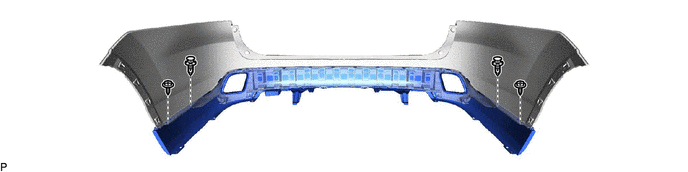

    2. Install the 2 clips.
      GTY427212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the lower rear bumper cover with the 2 screws.
  8. INSTALL REAR BUMPER EXTENSION

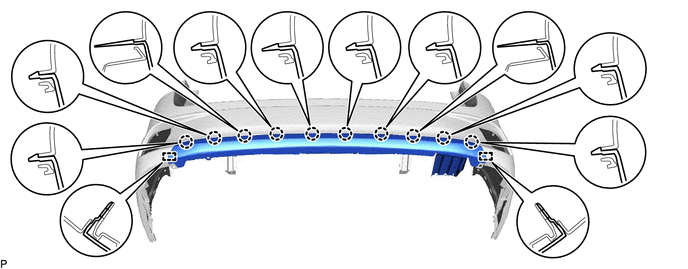

    1. Engage the 2 guides and 10 claws.
      GTY427211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

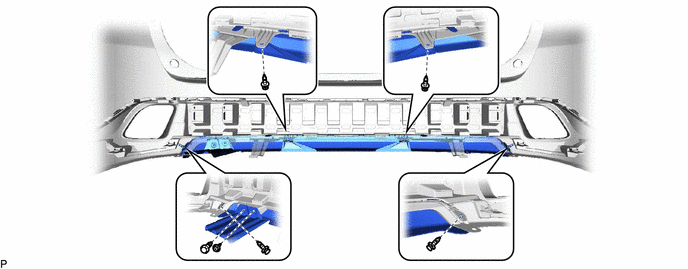

    2. Install the 5 clips.
      GTY451140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear bumper extension with the screw.
  9. INSTALL REAR BUMPER ENERGY ABSORBER

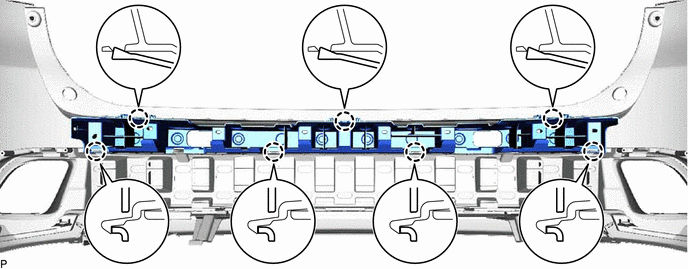

    1. Engage the 7 claws to install the rear bumper energy absorber.
      GTY427215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

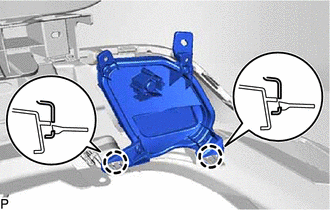

  10. INSTALL REFLEX REFLECTOR ASSEMBLY LH
    1. Engage the 2 claws.
      GTY427214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

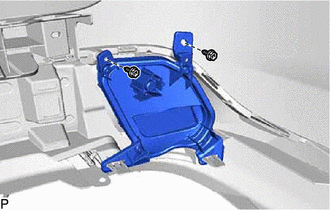

    2. Install the reflex reflector assembly LH with the 2 screws.
      GTY427213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

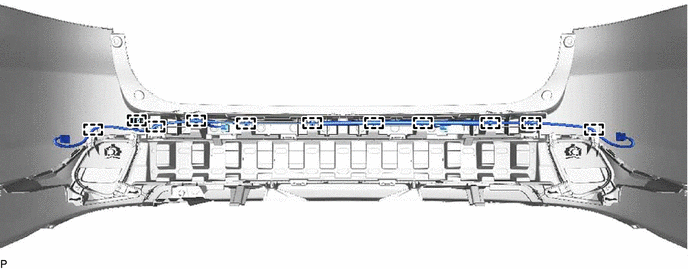

  12. INSTALL NO. 3 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)
    1. Engage the 11 clamps to install the No. 3 luggage room wire.
      GTY427210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL ULTRASONIC SENSOR BEZEL (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedure for all the ultrasonic sensor bezels.

  14. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

    HINT:

    Use the same procedure for all the No. 1 ultrasonic sensors.
