Rear Bumper Components Overview [12/2016 - ]

Fig 1: Rear Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Mudguard	*B	w/ Mudguard
*1	QUARTER PANEL WHEEL OPENING MOULDING LH	*2	QUARTER PANEL WHEEL OPENING MOULDING RH
*3	REAR BUMPER ASSEMBLY	*4	REAR QUARTER PANEL MUDGUARD LH
*5	REAR QUARTER PANEL MUDGUARD RH	-	-

Fig 2: Rear Bumper Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

REFLEX REFLECTOR ASSEMBLY LH

*2

REFLEX REFLECTOR ASSEMBLY RH

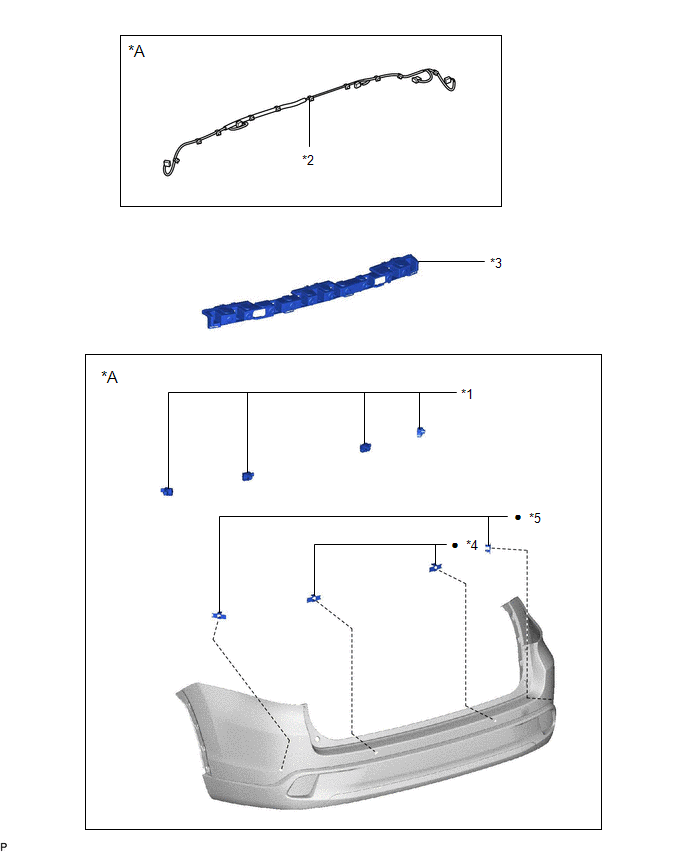

Fig 3: Rear Bumper Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 1 ULTRASONIC SENSOR	*2	NO. 3 LUGGAGE ROOM WIRE
*3	REAR BUMPER ENERGY ABSORBER	*4	REAR CENTER ULTRASONIC SENSOR RETAINER
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

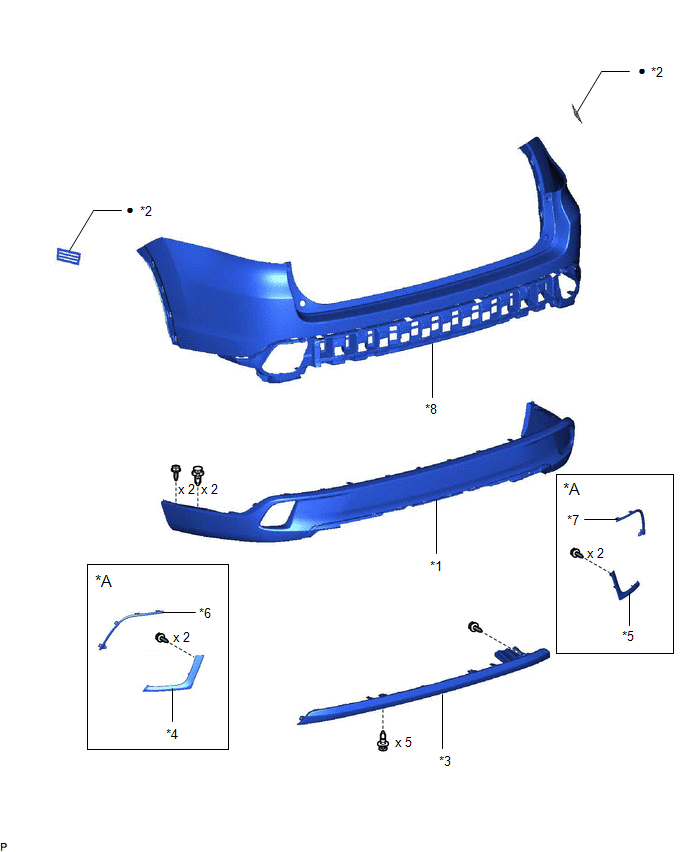

Fig 4: Rear Bumper Replacement Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Plated Moulding	-	-
*1	LOWER REAR BUMPER COVER	*2	NO. 2 MOULDING TAPE
*3	REAR BUMPER EXTENSION	*4	REAR BUMPER EXTENSION MOULDING LH
*5	REAR BUMPER EXTENSION MOULDING RH	*6	REAR BUMPER SIDE MOULDING LH
*7	REAR BUMPER SIDE MOULDING RH	*8	REAR BUMPER COVER
•	Non-reusable part	-	-

Fig 5: Rear Bumper Replacement Components With Torque Specifications (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Mudguard	-	-
*1	NO. 1 REAR BUMPER REINFORCEMENT	*2	REAR BUMPER SIDE SEAL LH
*3	REAR BUMPER SIDE SEAL RH	*4	REAR BUMPER SIDE SUPPORT LH
*5	REAR BUMPER SIDE SUPPORT RH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
