Removal [12/2013 - ]: Procedure

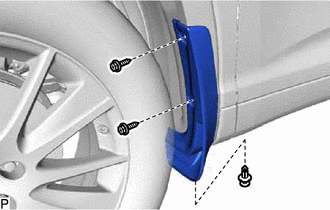

  1. REMOVE FRONT FENDER MUDGUARD
    1. Remove the 2 screws.
      GTY452952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and front fender mudguard.

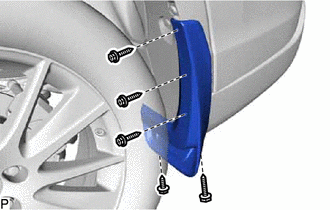

  2. REMOVE REAR QUARTER PANEL MUDGUARD
    1. Remove the 5 screws and rear quarter panel mudguard.
      GTY435514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
