Removal [12/2016 - ]: Procedure

Refer to REMOVAL [12/2016 - ]

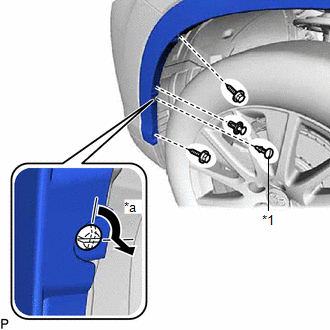

1. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pin Hold Clip
   *a	90°

2. Remove the 2 screws.
3. Remove the clip.
4. Remove the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

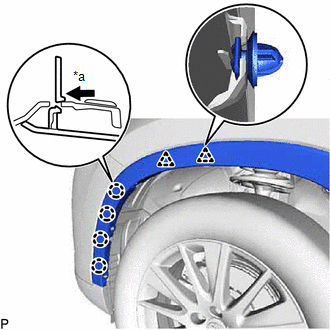

5. Pull back the edge of the front fender liner LH and disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

   NOTE:

   • Do not apply excessive force when pulling back the front fender liner LH.
   • To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly LH.

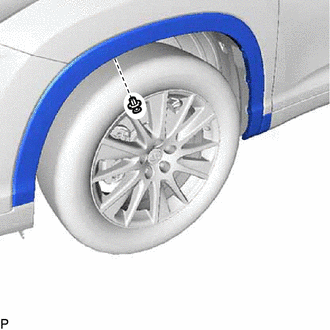

6. Disengage the 2 clips and disconnect the front fender wheel opening moulding sub-assembly LH.

HINT:

Use the same procedure as for the LH side.

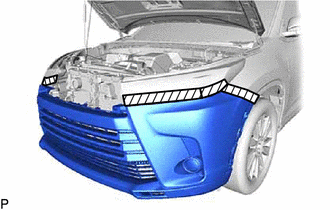

1. Apply protective tape around the front bumper assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

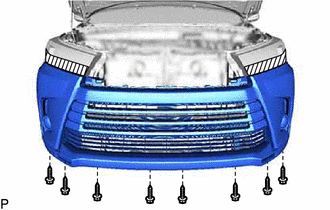

2. Remove the 8 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

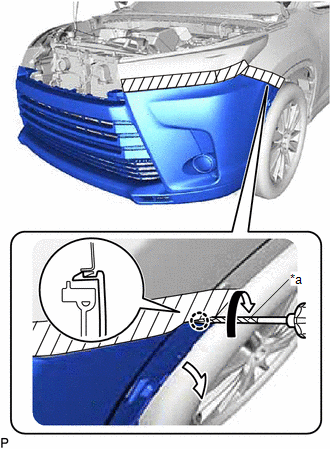

3. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

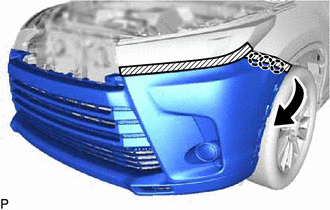

4. Disengage the 3 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH side and LH side.

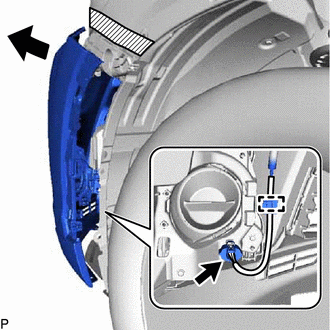

5. w/o Fog Light:
   1. Pull back the side of the front bumper assembly, disengage the clamp and disconnect the connector.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

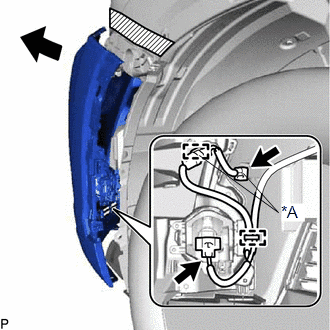

6. w/ Fog Light:
   1. Pull back the side of the front bumper assembly, disengage each clamp and disconnect each connector.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *A	w/ Intuitive Parking Assist Sensor System (for 6 Sensor Type)

      HINT:

      Use the same procedure for the RH side and LH side.

7. w/ Panoramic View Monitor System:
   1. Disconnect the connector.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

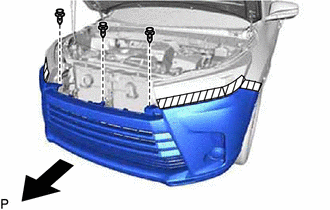

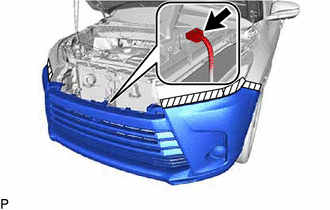

8. Remove the 3 clips and front bumper assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
