Removal [12/2013 - 11/2016]: Procedure

REMOVE RADIATOR GRILLE
Refer to REMOVAL [12/2013 - 11/2016]

DISCONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH

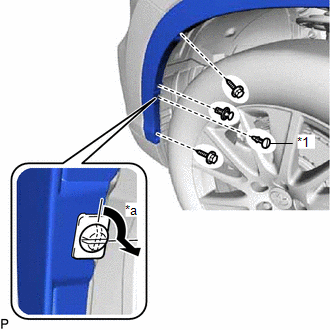

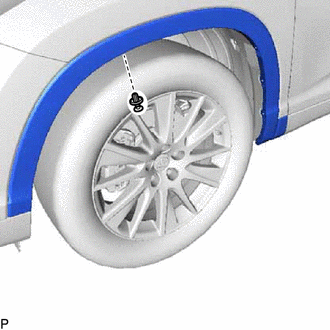

Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Pin Hold Clip
*a	90°

Remove the 2 screws.
Remove the clip.

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

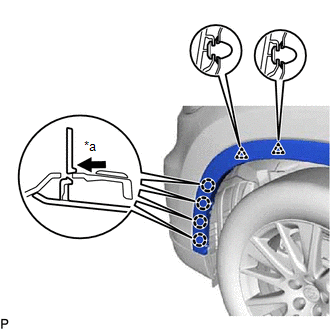

Pull back the edge of the front fender liner LH and disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

NOTE:

Do not apply excessive force when pulling back the front fender liner LH.
To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly LH.

Disengage the 2 clips and disconnect the front fender wheel opening moulding sub-assembly LH.

DISCONNECT FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

REMOVE FRONT BUMPER ASSEMBLY

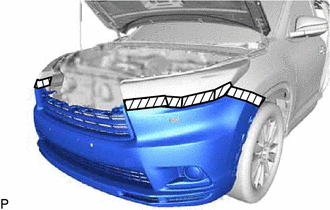

Apply protective tape around the front bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

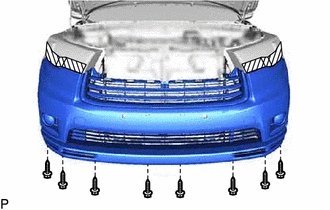

Remove the 8 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

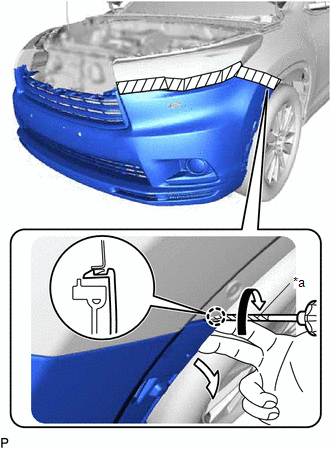

Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

HINT:

Use the same procedure for the RH side and LH side.

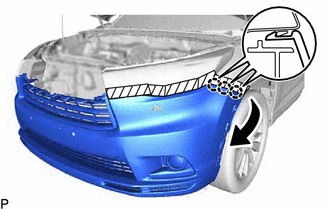

Disengage the 3 claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side and LH side.

w/o Fog Light:

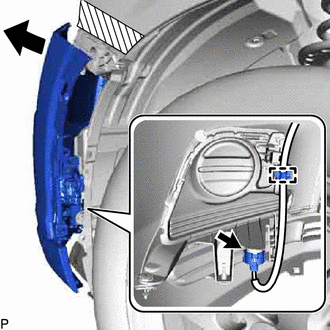

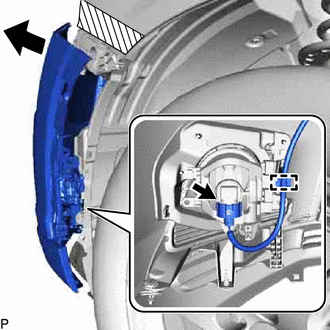

Pull back the side of the front bumper assembly, disengage the clamp and disconnect the connector.

NOTE:

Do not apply excessive force when pulling back the front bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side and LH side.

w/ Fog Light without Daytime Running Light:

Pull back the side of the front bumper assembly, disengage the clamp and disconnect the connector.

NOTE:

Do not apply excessive force when pulling back the front bumper assembly.

HINT:

Use the same procedure for the RH side and LH side.

w/ Fog Light with Daytime Running Light:

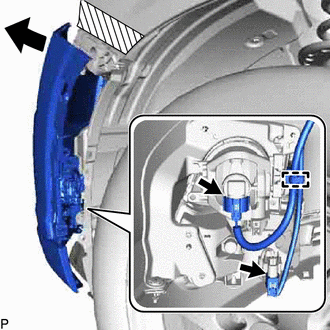

Pull back the side of the front bumper assembly, disengage the clamp and disconnect the 2 connectors.

NOTE:

Do not apply excessive force when pulling back the front bumper assembly.

HINT:

Use the same procedure for the RH side and LH side.

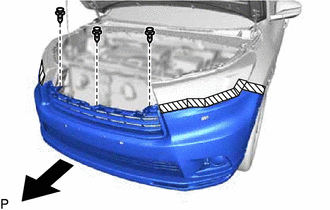

Remove the 3 clips and front bumper assembly as shown in the illustration.
